Shimano 105 CS-R7101 12-Speed Cassette | 11–34T

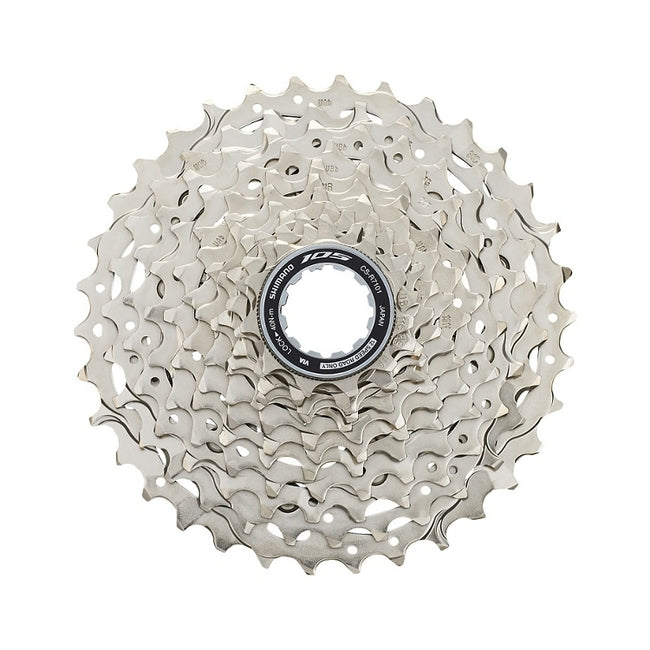

Shimano 105 CS-R7101 12-Speed Cassette — 11–34T

The Shimano 105 CS-R7101 brings a useful spread of road gearing to a compatible 12-speed drivetrain. The 11-tooth smallest sprocket gives you a tall gear for faster riding, while the 34-tooth largest sprocket gives you a lower gear for climbing. This is the 11–34T version, Shimano product code ICSR710112134, for compatible mechanical and Di2 systems.

What the gearing means on your bike

A cassette is the stack of rear sprockets that your chain moves across when you shift. With the same front chainring, moving the chain onto a larger rear sprocket makes pedaling easier; moving it onto a smaller sprocket gives you a taller gear. The actual gearing also depends on your front chainrings, so an 11–34 cassette alone does not tell you how easy your lowest gear will be.

The first five sprockets run from 11 through 15 teeth in one-tooth steps. Those close steps let you make smaller cadence adjustments in the faster gears. The larger sprockets spread the remaining ratios out toward 34 teeth, giving you more climbing range without changing the number of rear speeds.

Key features

• Shimano 105 R7100-series, 12-speed road cassette
• 11–34T range for varied road terrain
• HYPERGLIDE tooth profiles and shift ramps help guide the chain during shifts
• Suitable for compatible Shimano 12-speed mechanical and Di2 shifting systems
• Nickel-plated steel sprockets with an aluminum spider

Compatibility: check the drivetrain and the wheel

Shimano identifies this cassette as compatible with its road 11-speed freehub body and its dedicated road 12-speed freehub body. That describes the splined mounting surface on the rear wheel. It does not mean the cassette works with 11-speed shifters or an 11-speed chain.

Use a compatible Shimano 12-speed drivetrain and HG 12-speed chain. Confirm that your rear derailleur supports a 34-tooth largest sprocket and has enough total capacity for your chainring combination. If changing cassette range, chain length and derailleur adjustment may also need attention.

Technical specifications

Common buying questions

Does it work with both Di2 and mechanical shifting?
Yes, when paired with a compatible Shimano 12-speed drivetrain. Electronic versus cable-operated shifting is only one part of the compatibility check.

Can I install it on my 11-speed bike to gain an extra gear?
Not by changing the cassette alone. Freehub fit and drivetrain compatibility are separate checks; the controls, derailleur and chain must suit the 12-speed system.

Is 11–34 easier to climb with than 11–30?
With the same front chainring, the 34-tooth sprocket provides a lower gear than a 30-tooth sprocket. Confirm derailleur capacity and chain length before changing ranges.

Is this a complete drivetrain kit?
No. This listing is for one cassette. A chain, derailleur, shifters and installation tools are separate.

Need a fit check? Send Go Grava your rear derailleur model, current cassette and wheel/freehub details before ordering.
