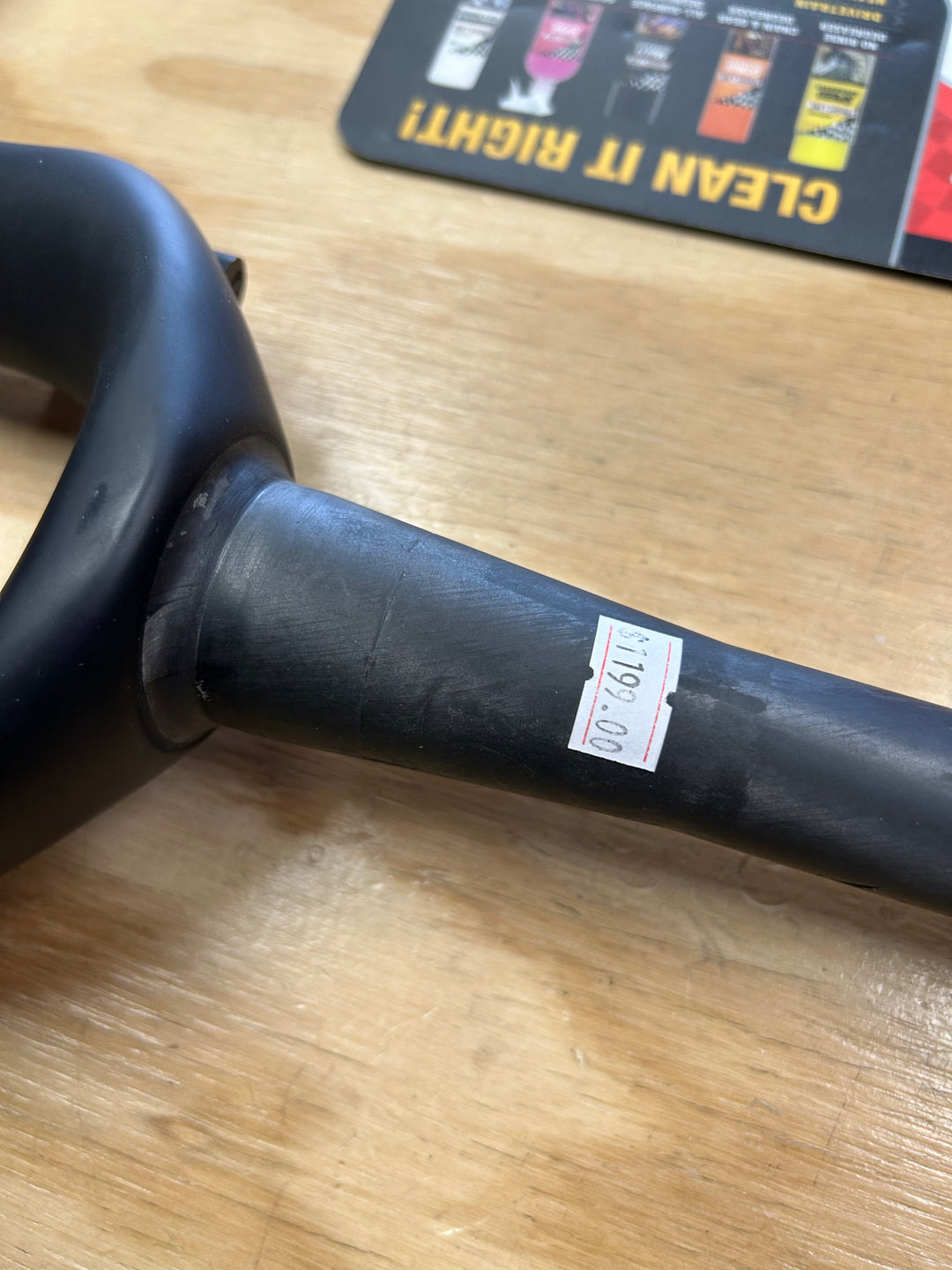

This is a Cane Creek Invert CS gravel suspension fork with Climb Switch that was used in our shop strictly as a demo display fork. It was professionally installed on four bicycles to showcase fit and ride quality, then removed and cleaned each time. Total ride time is approximately four weeks.

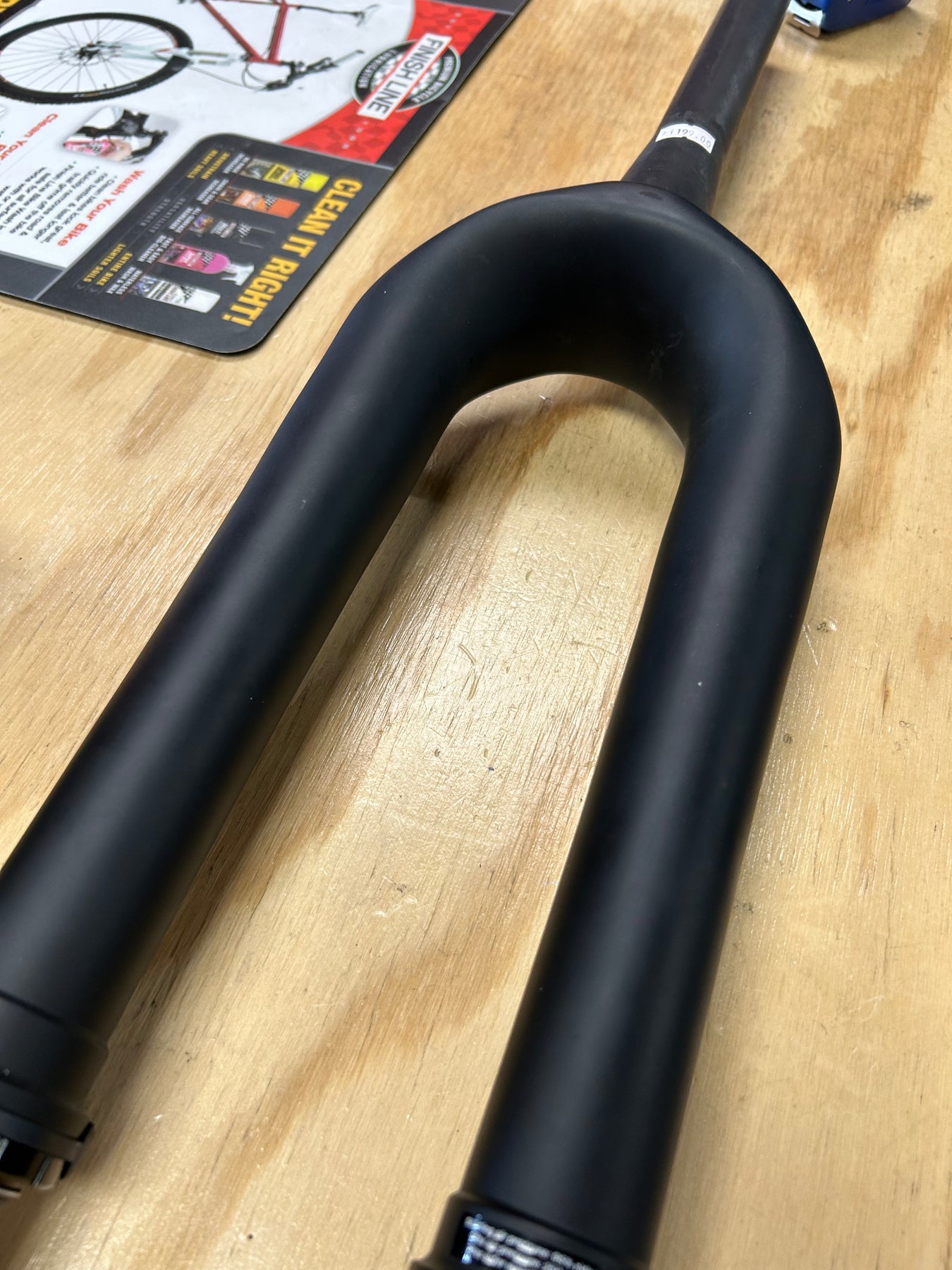

The fork is extremely clean and mechanically sound. This is a lightly used demo unit—not customer-owned—and is being sold as a shop demo at a reduced price.
Key Functional Details
- 30mm suspension travel designed specifically for gravel riding

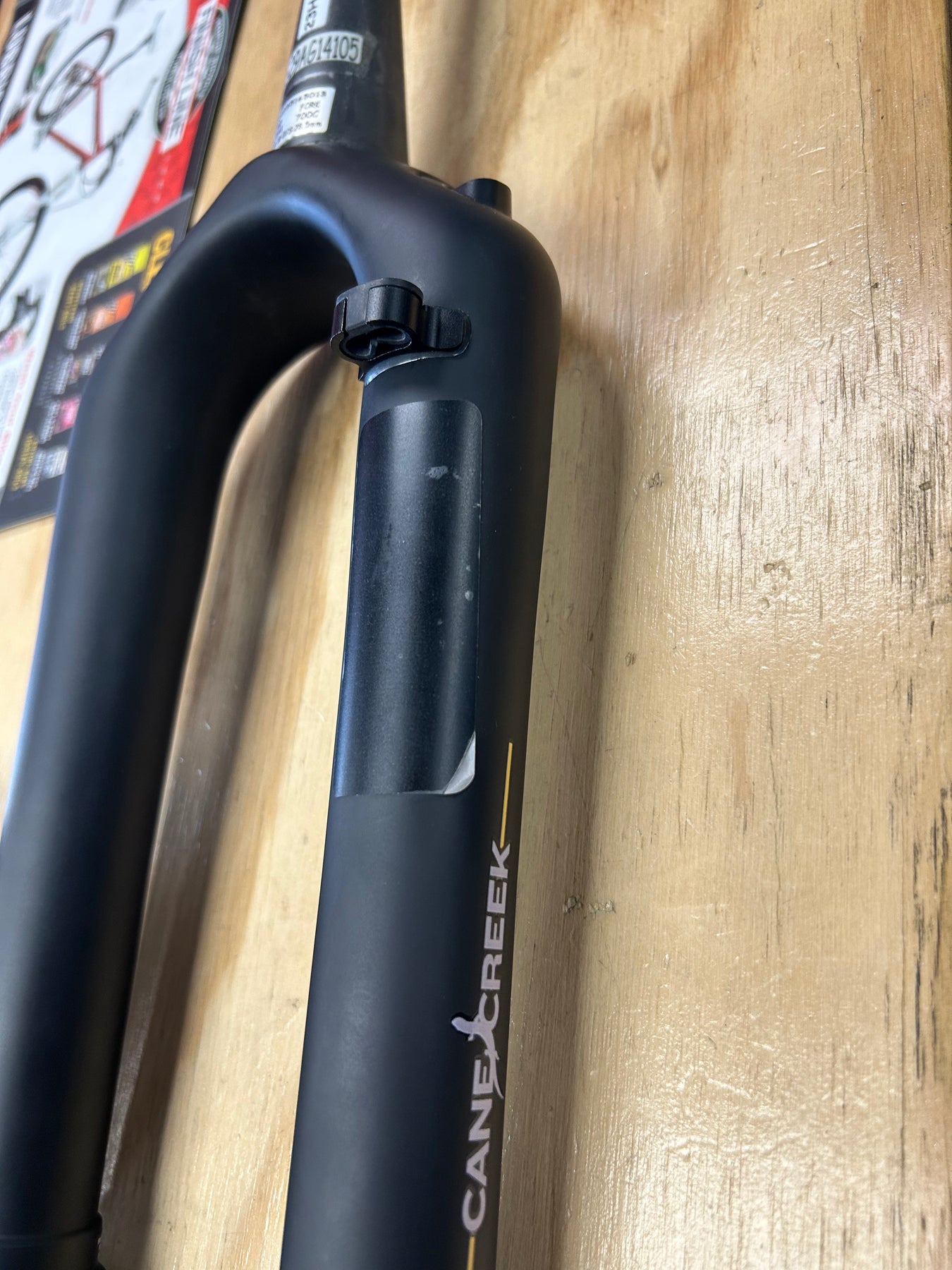

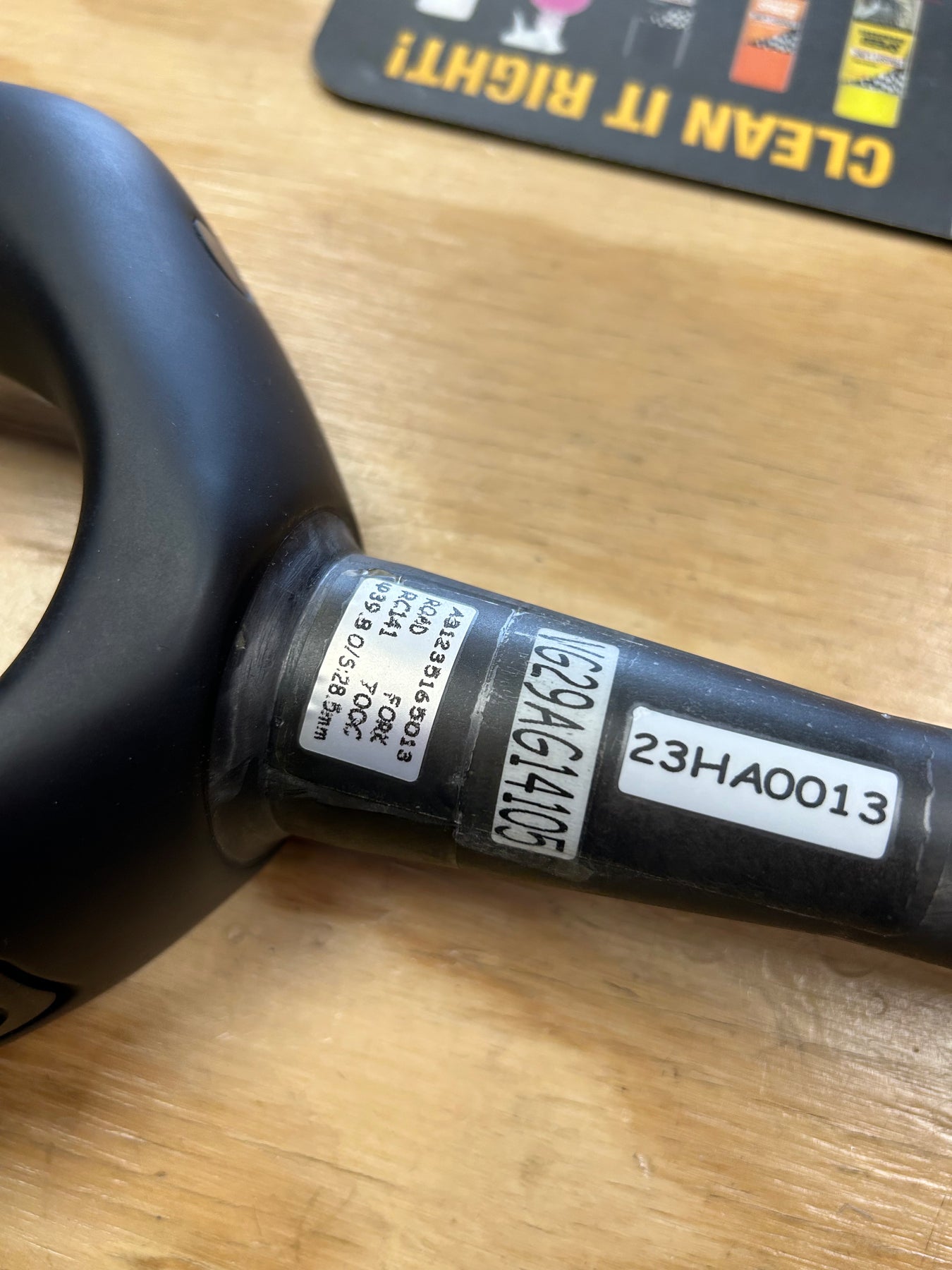

- Carbon fiber crown and steerer bonded to aluminum upper tubes

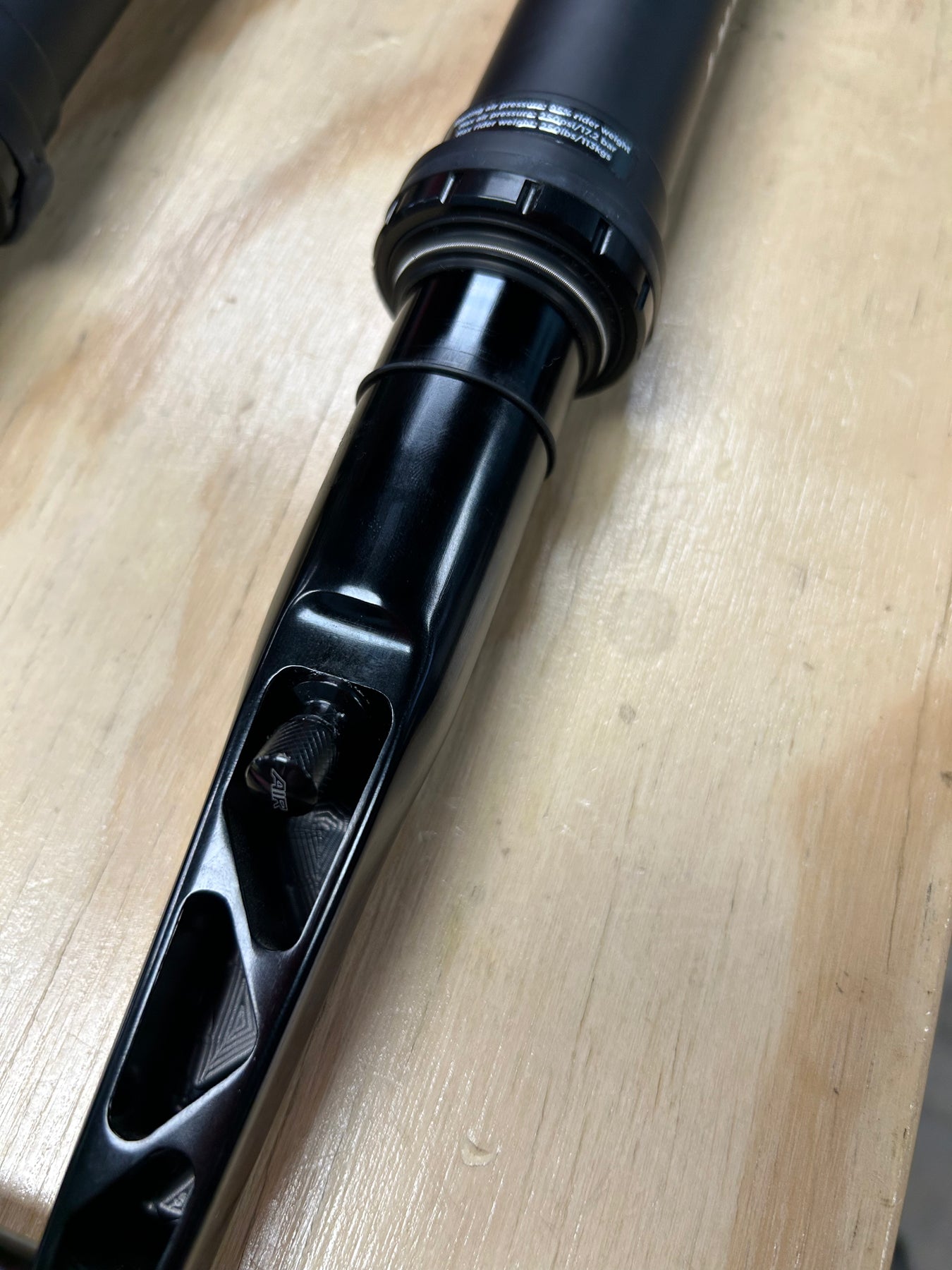

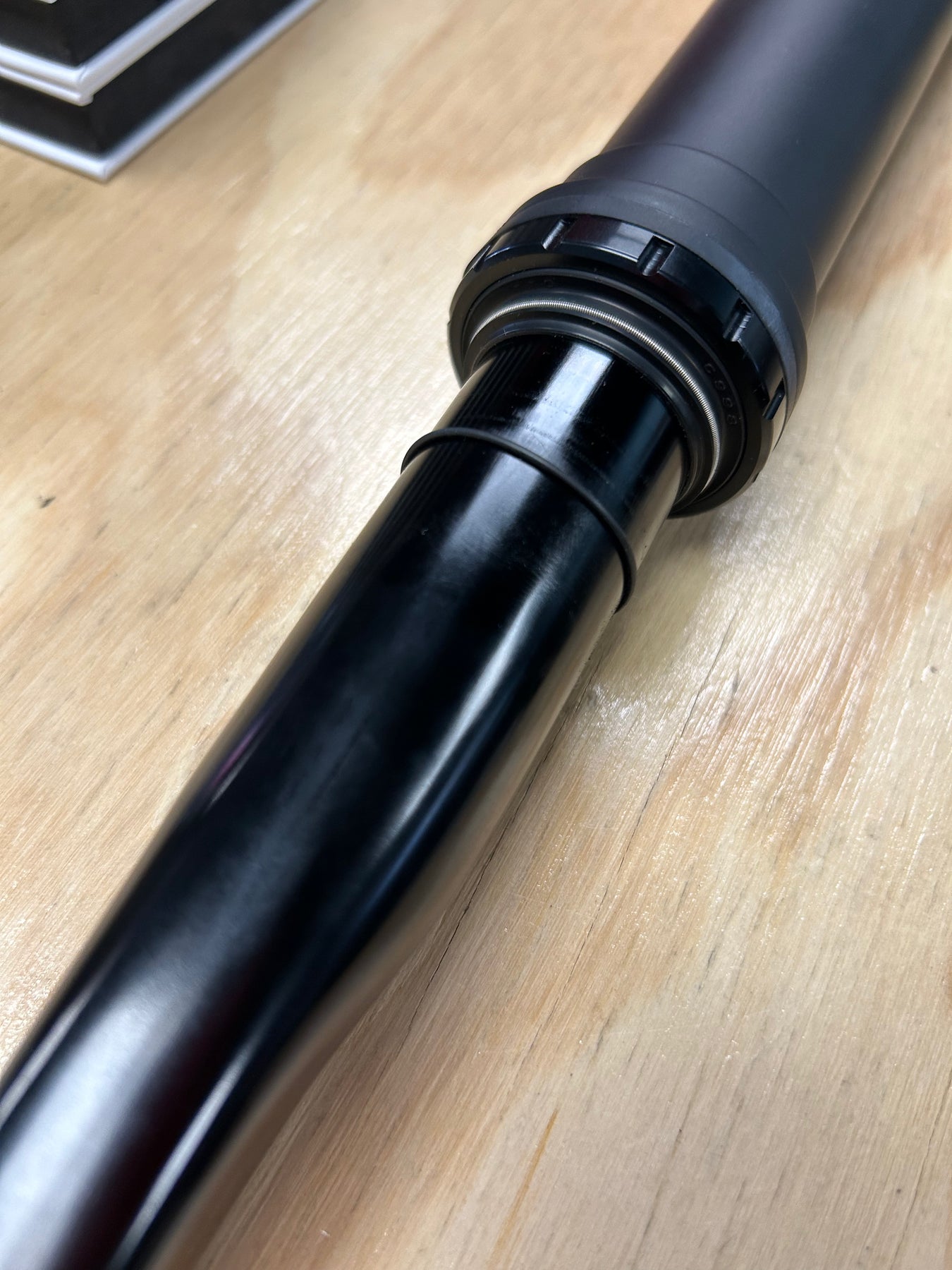

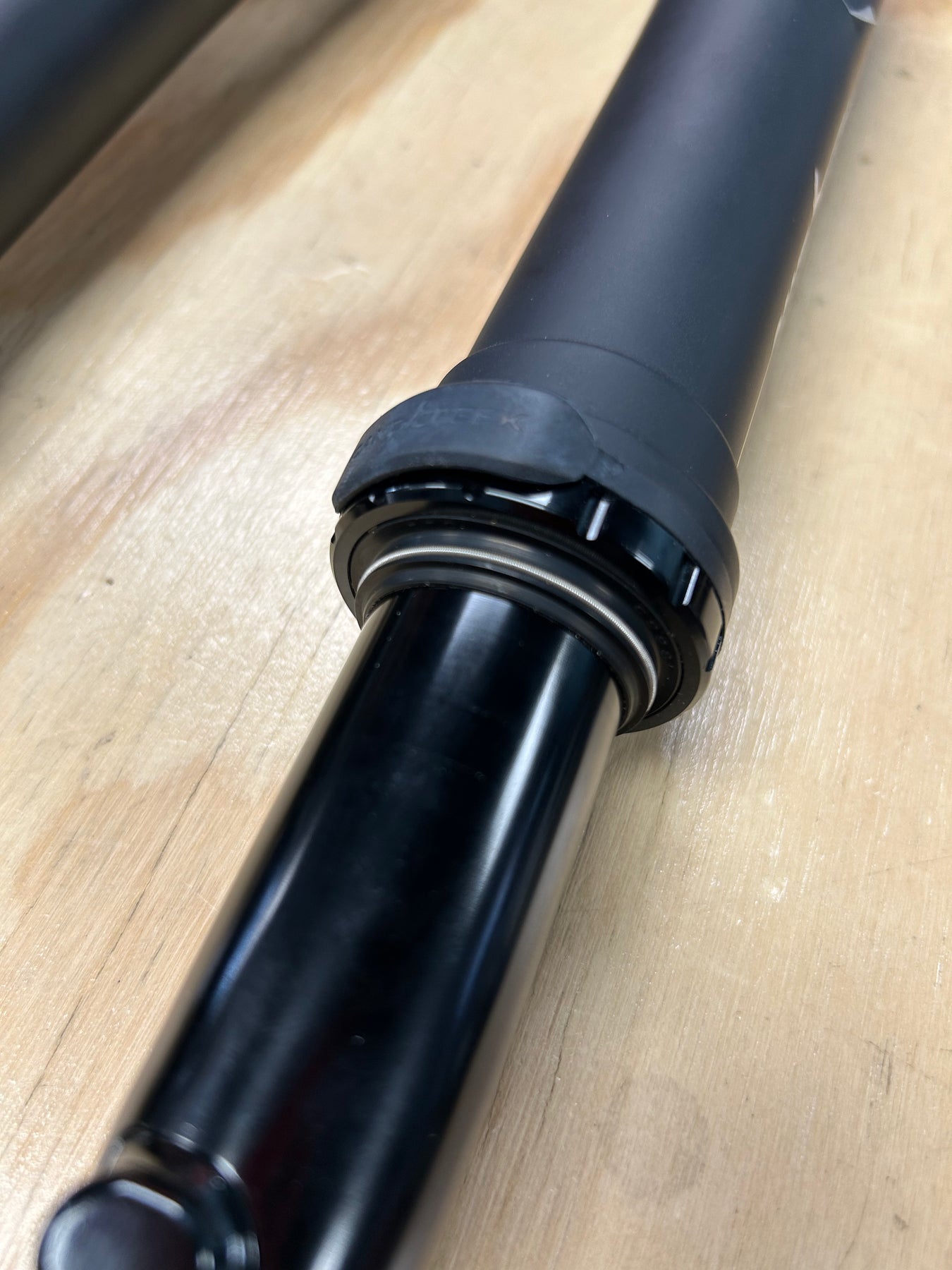

- One-piece forged lower with 30mm stanchions
- Air spring system adjustable for rider weight

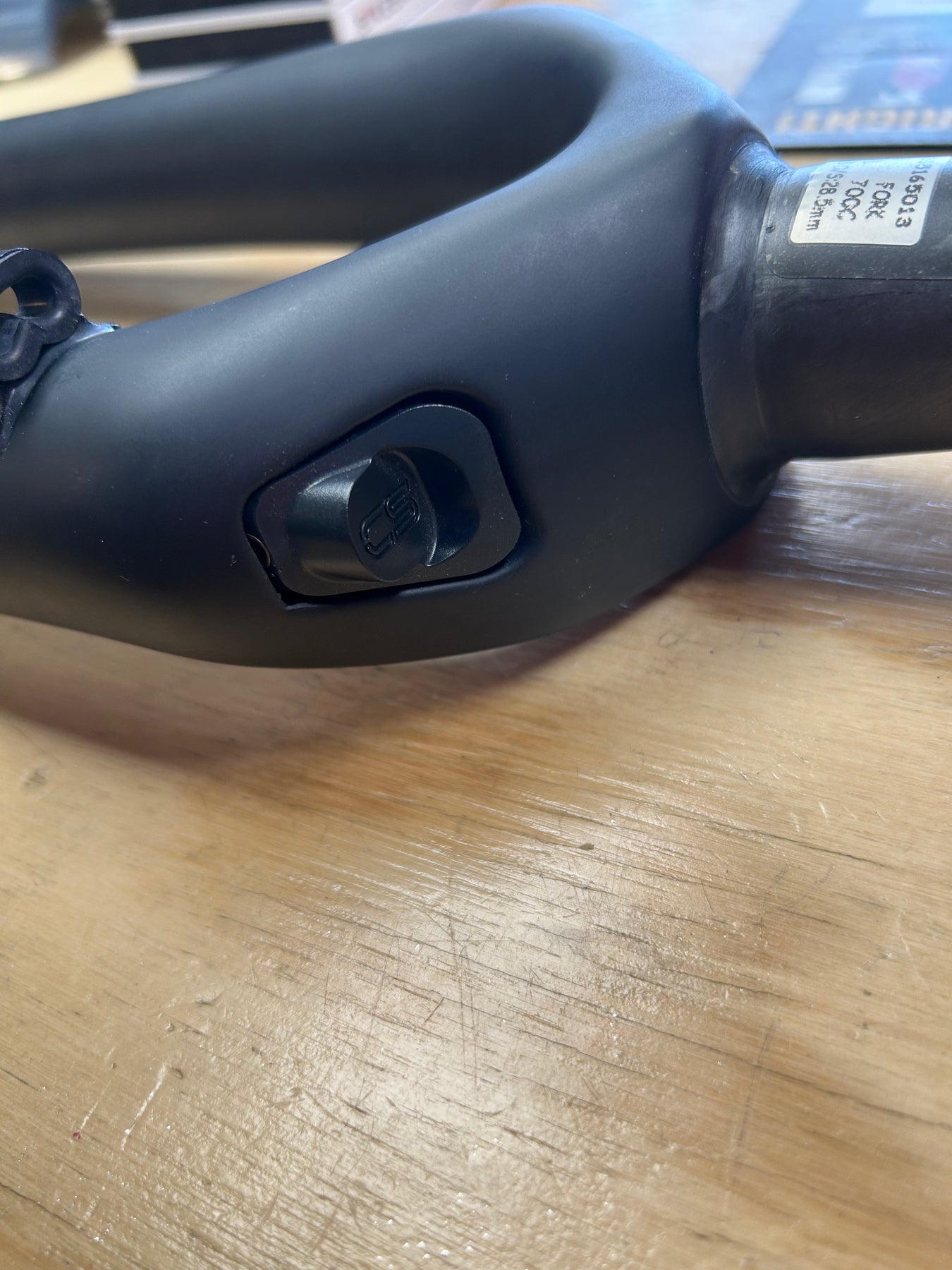

- Integrated Climb Switch for firm mode during out-of-saddle efforts
- Flat-mount disc brake interface (160mm native, 180mm with rear +20 adapter)
- Includes thru axle, expansion plug, headset bearing, and brake hardware

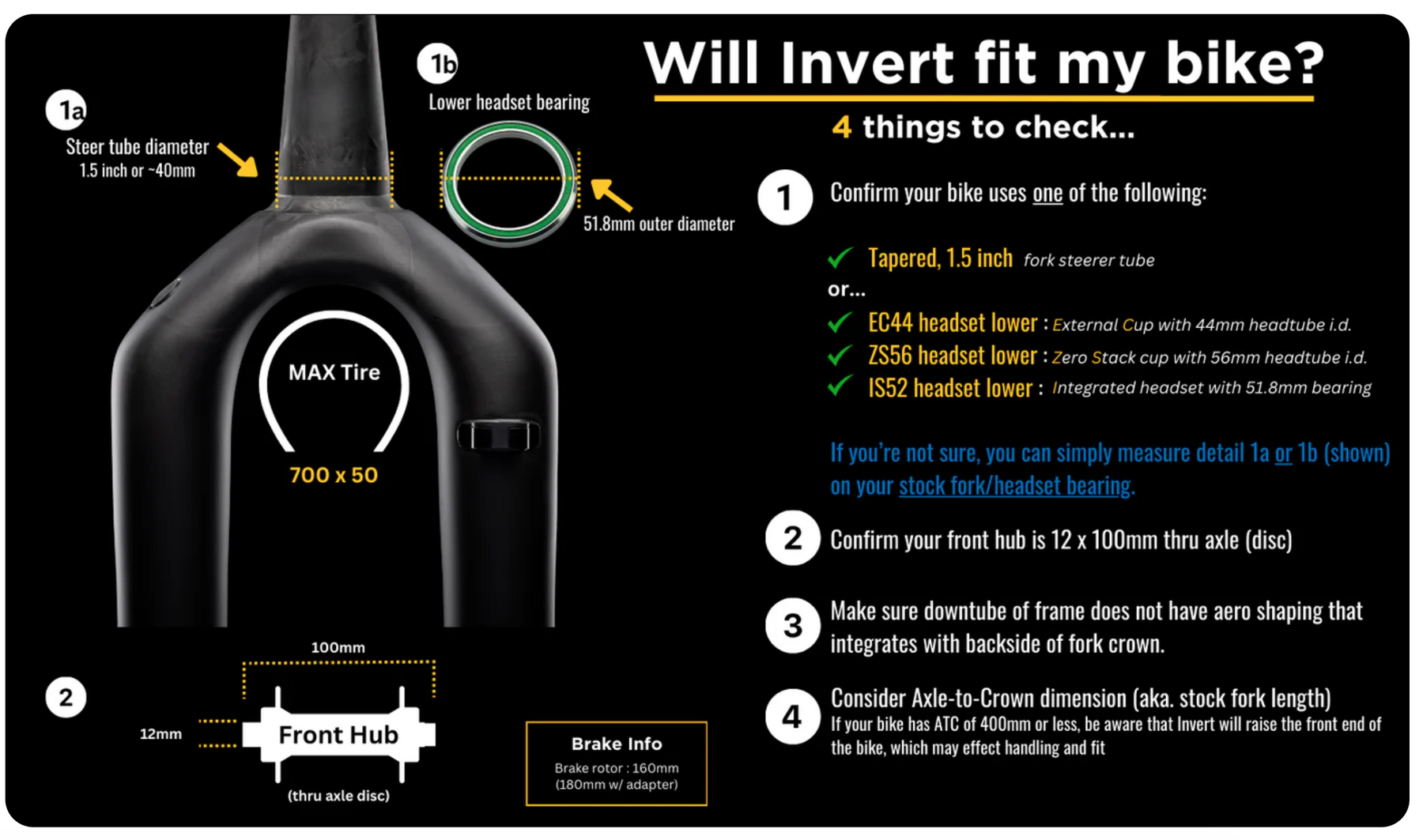

Compatibility & Technical Notes
- Model: Invert CS
- Travel: 30mm
- Wheel size: 700c
- Maximum tire size: 700c × 50mm

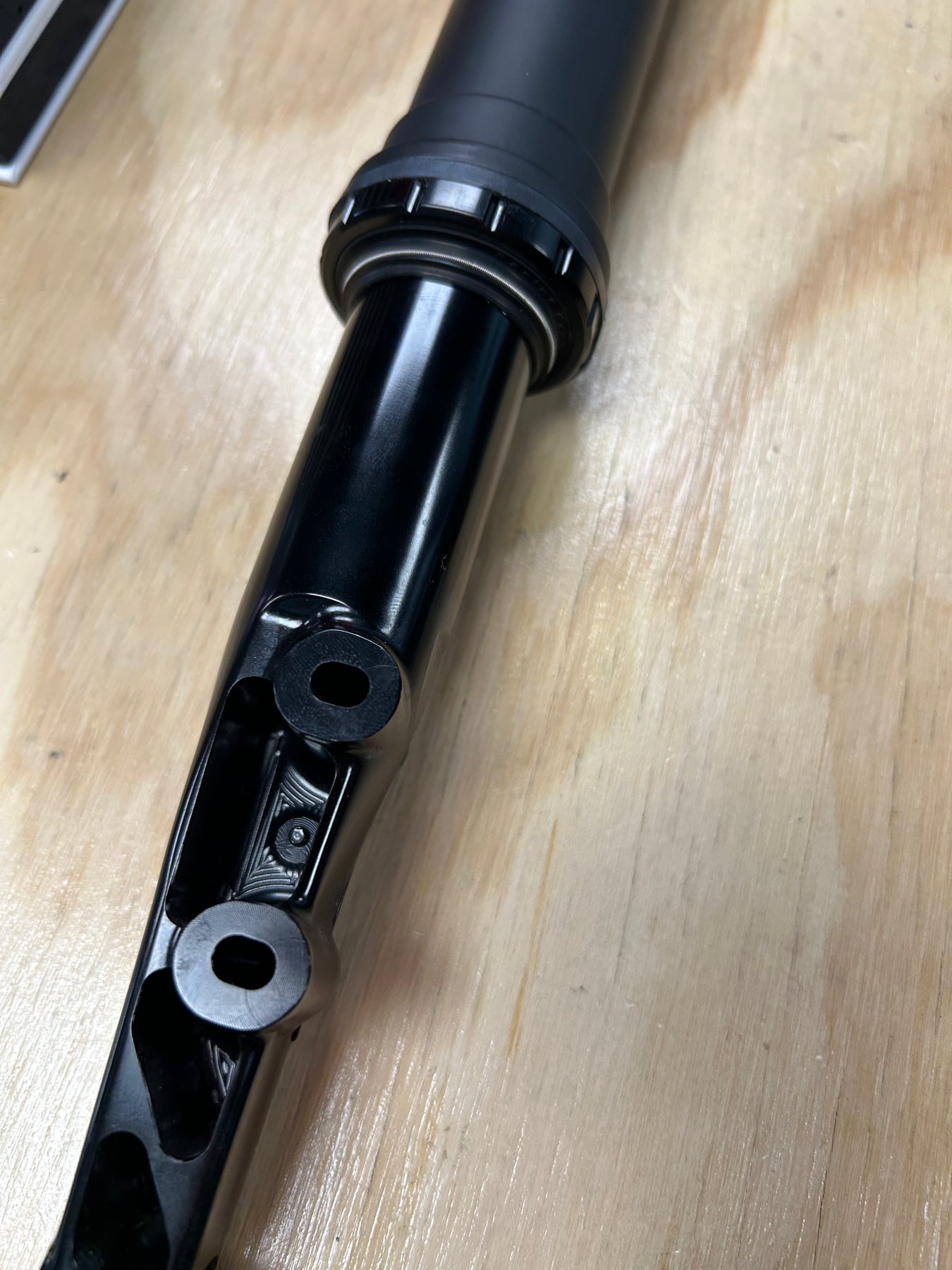

- Axle: 12×100mm thru axle (included)
- Brake mount: Flat mount (160mm rotor direct)

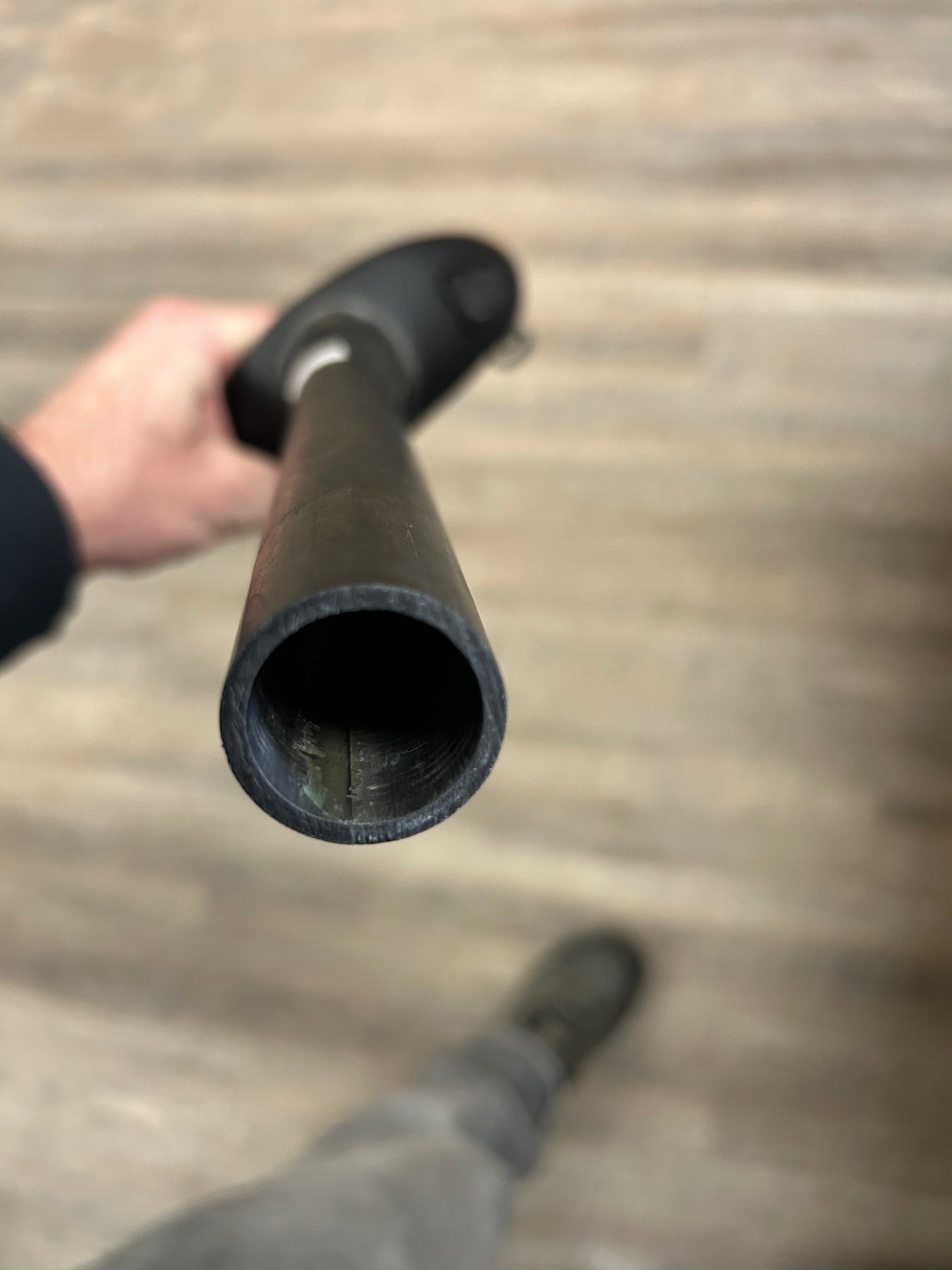

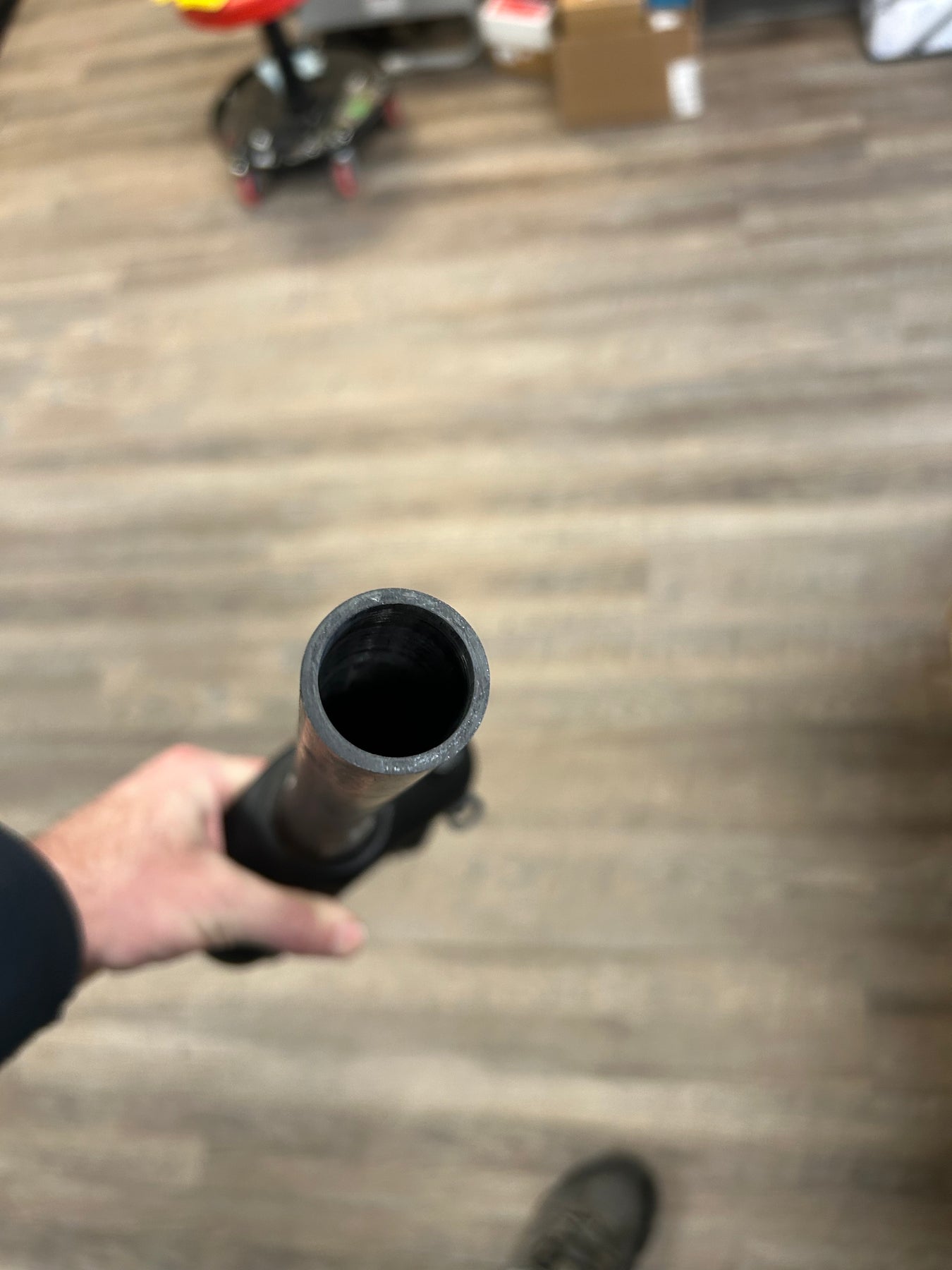

- Steerer: Tapered 1 1/8” to 1.5” (28.6mm to 40mm)
- Offset: 45mm
- Axle-to-crown: 425mm (30mm travel)
- Integrated 36° crown race
- Rider weight limit: 250 lbs / max 250 PSI
- Not compatible with QR front hubs
- (flat mount only)
Service / Ownership Context

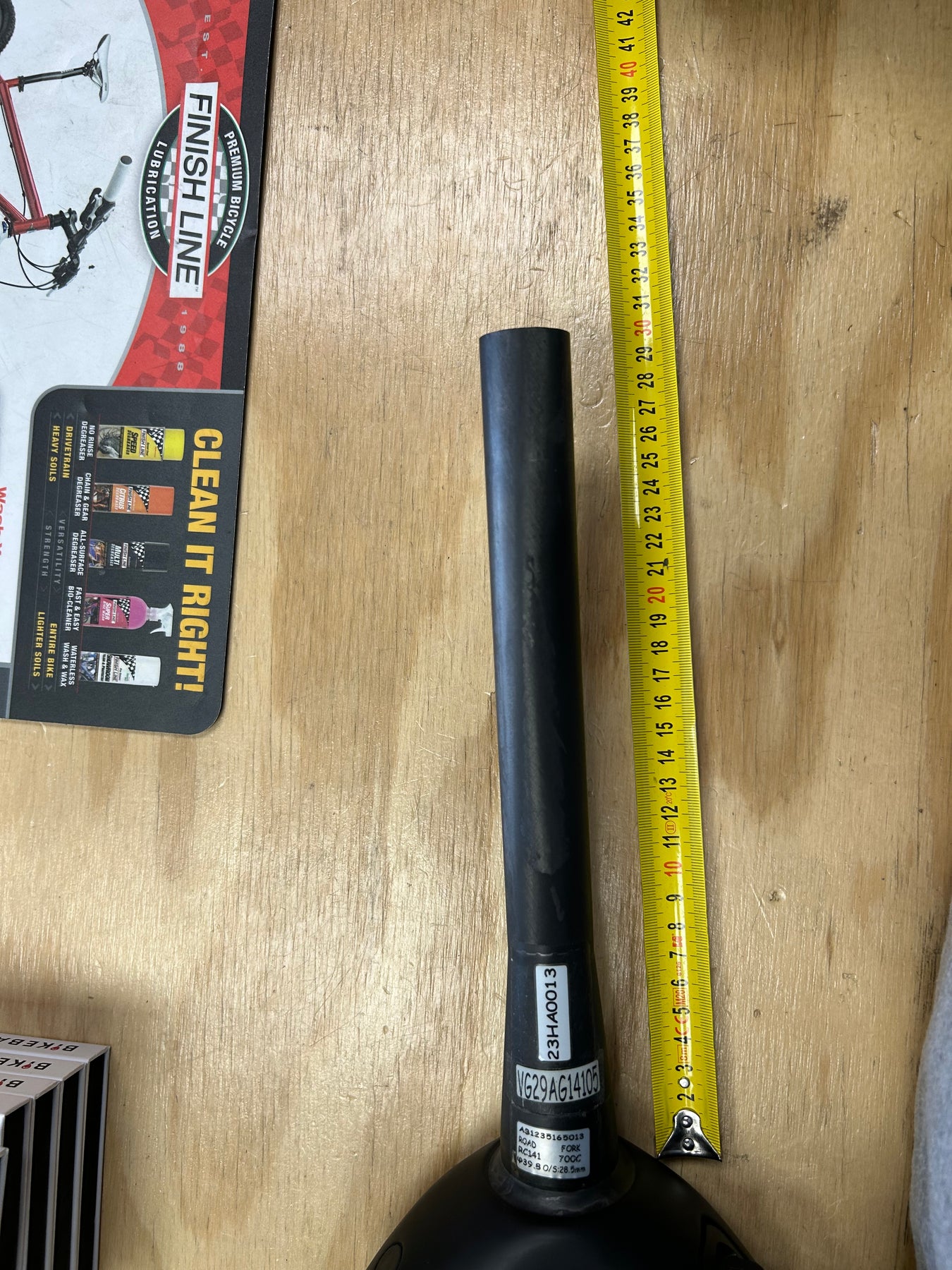

This fork requires routine suspension maintenance like any air-sprung system. Cane Creek recommends a splash oil flush every 50 hours and a full service every 100 hours. The demo unit has minimal ride time and has been shop-inspected. Installation and air-spring setup are shop-recommended to ensure correct steerer length, brake alignment, and rider pressure.
Fit & Use Signals
- Good fit for gravel bikes using 12×100 thru-axle front hubs
- Good fit for riders wanting front-end compliance on rough gravel
- Good fit for modern tapered head tubes with flat-mount brakes
- Not a fit for QR forks or straight-steerer frames
- Not a fit for bikes requiring post-mount calipers
Brand: Cane Creek Product Name: Invert SL Gravel Fork with Climb Switch (Demo) Product Type: Component UPC: Unknown MPN: BBG0004 Variant: Demo used Color: Black Size: Unknown Primary Use: Gravel riding, mixed surface riding Power / Voltage: Unknown Interfaces / Standards: 12×100 thru axle; flat mount disc; tapered steerer Materials: Carbon crown; aluminum uppers; forged aluminum lowers Compatible With: 700c gravel frames with tapered head tube; 12×100 hubs; flat mount brakes Not Compatible With: Quick release hubs; post mount brakes; straight steerer frames Installation Level: Shop recommended Service Notes: 50hr splash oil flush; 100hr full service; set air pressure for rider weight Wear Items: Air spring seals; fork oil What’s In The Box: Fork; thru axle; expansion plug; headset bearing; brake hardware Fit Signals (Good): Modern gravel bikes; 12×100 thru axle; flat mount brakes Fit Signals (Not A Fit): QR forks; post mount brakes; straight steerers Source Confidence: High
