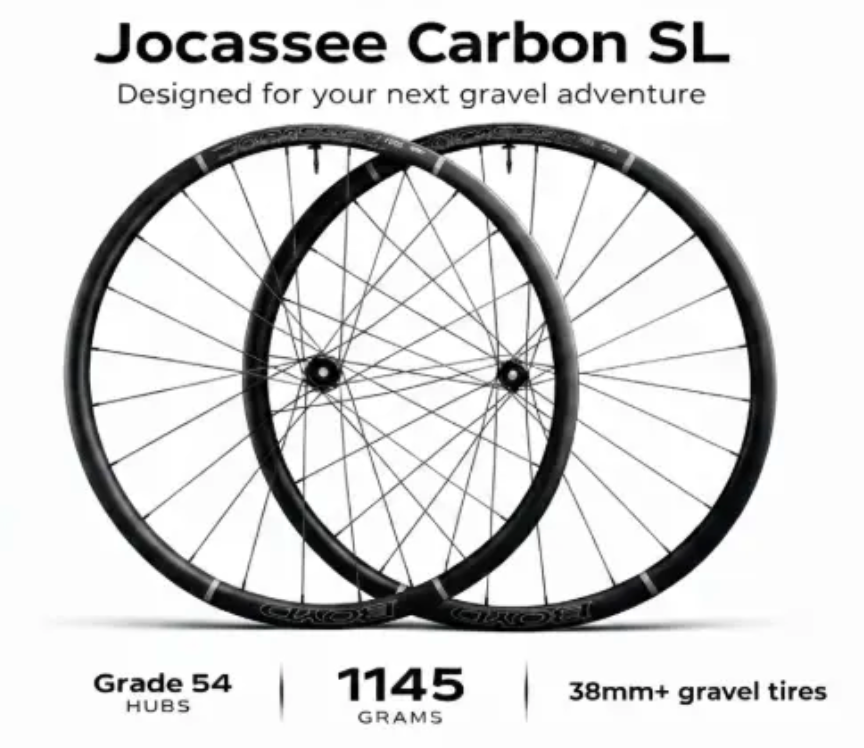

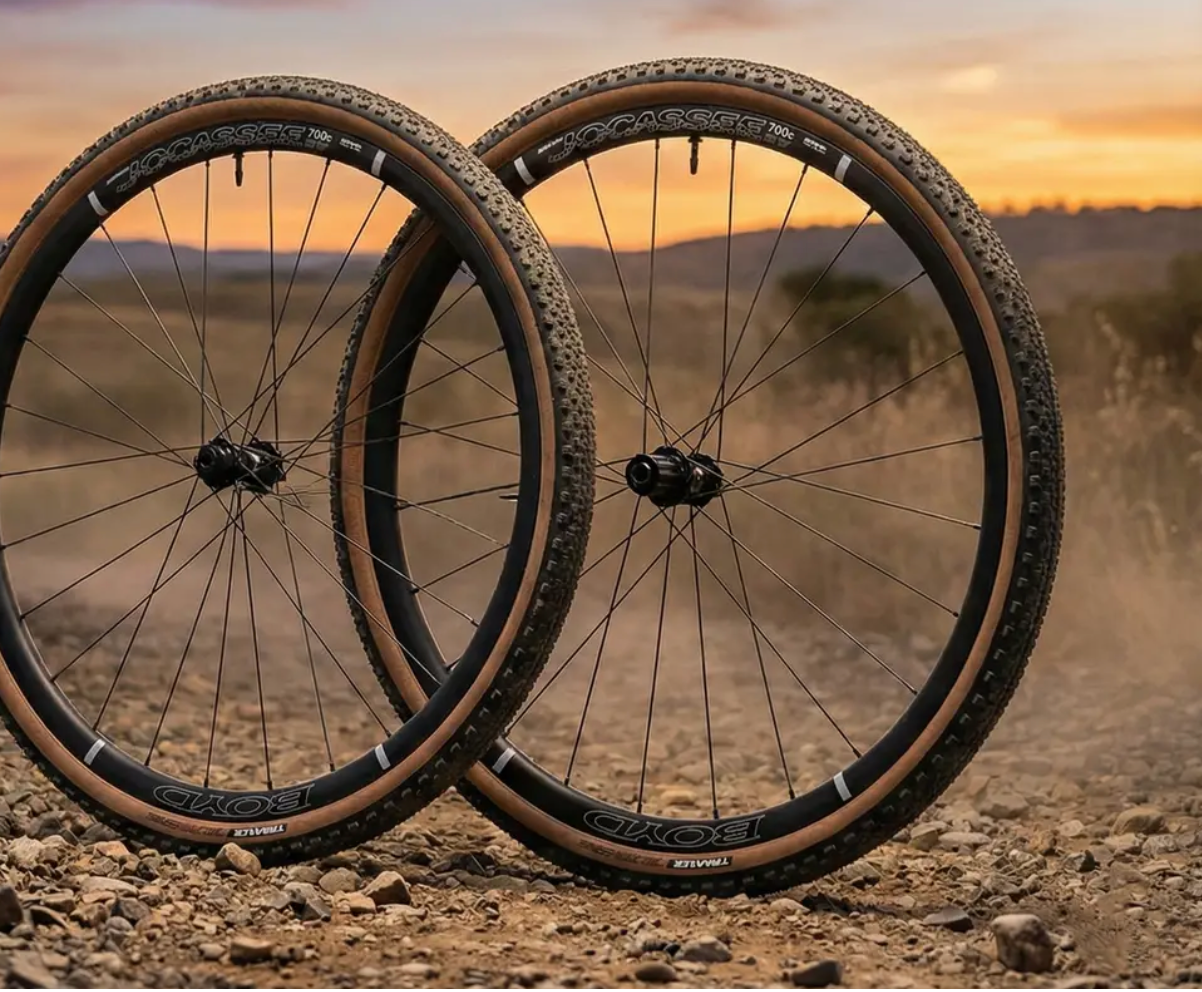

The Boyd Jocassee Carbon Gravel SL is a lightweight, high-volume gravel wheelset built for riders pushing into rough terrain, long-distance routes, and mixed surface riding. With a 26mm internal width and a 1145g total weight, it balances durability, compliance, and speed for modern gravel setups.
Key Functional Details
- 1145g wheelset weight (520g front / 625g rear)
- 26mm internal width optimized for 36–55mm gravel tires

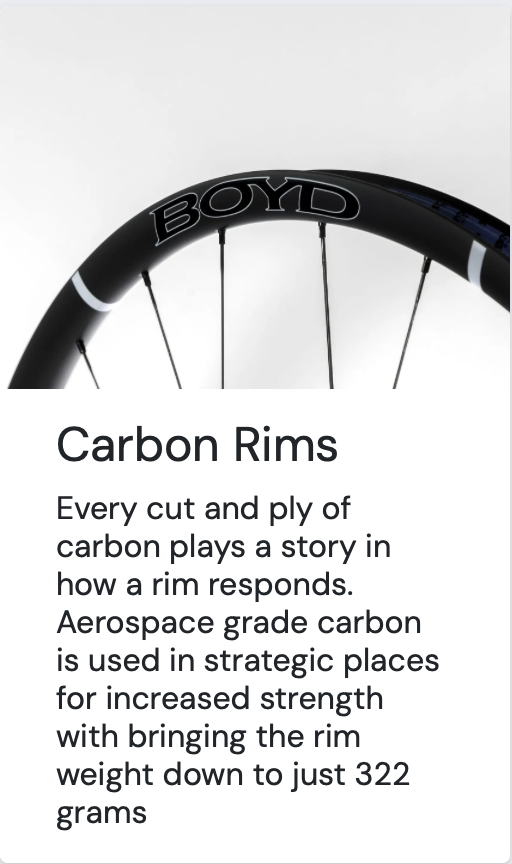

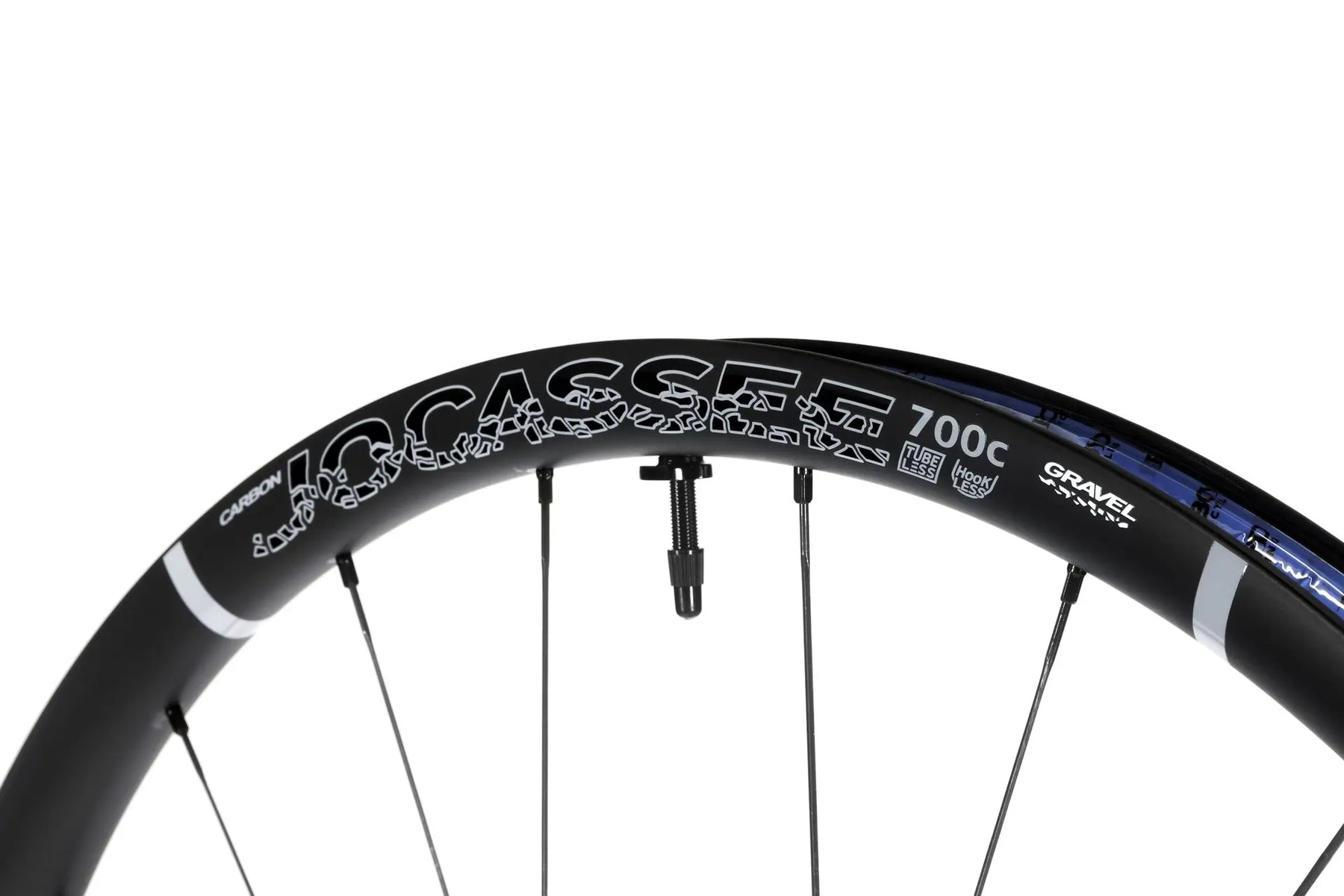

- Carbon rim construction using aerospace-grade layup

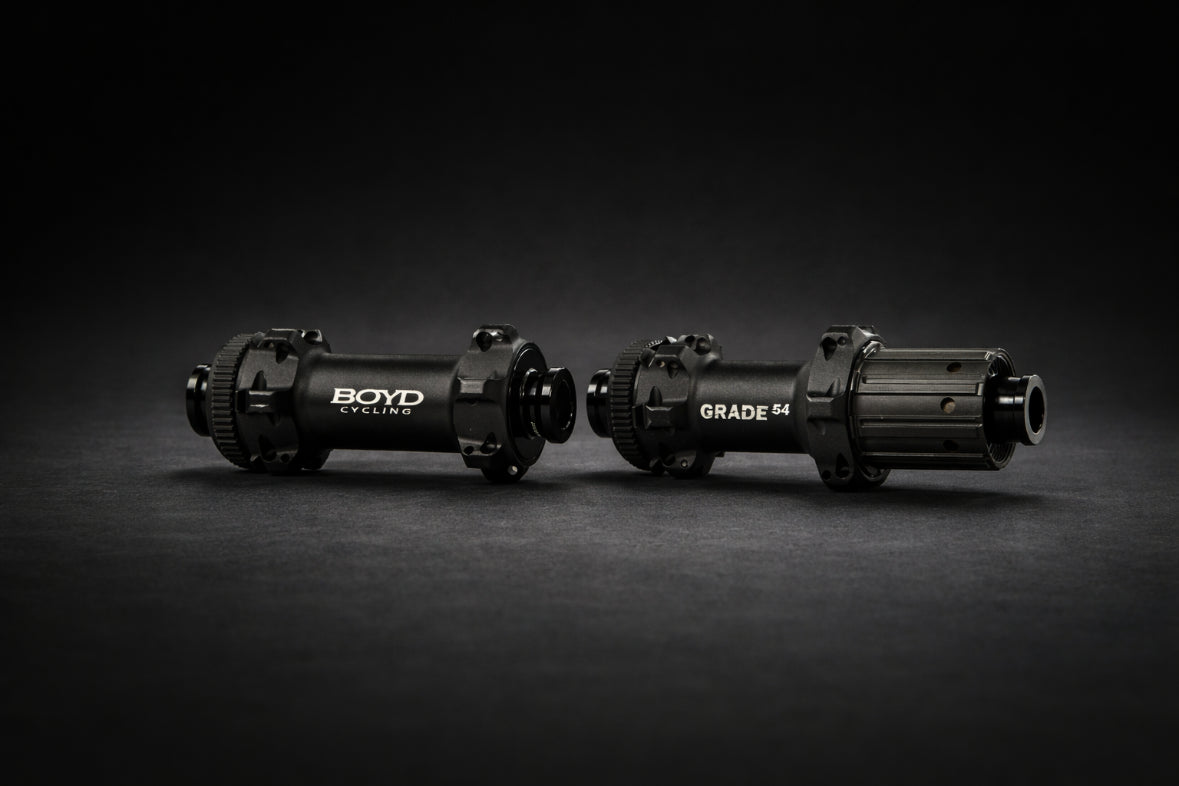

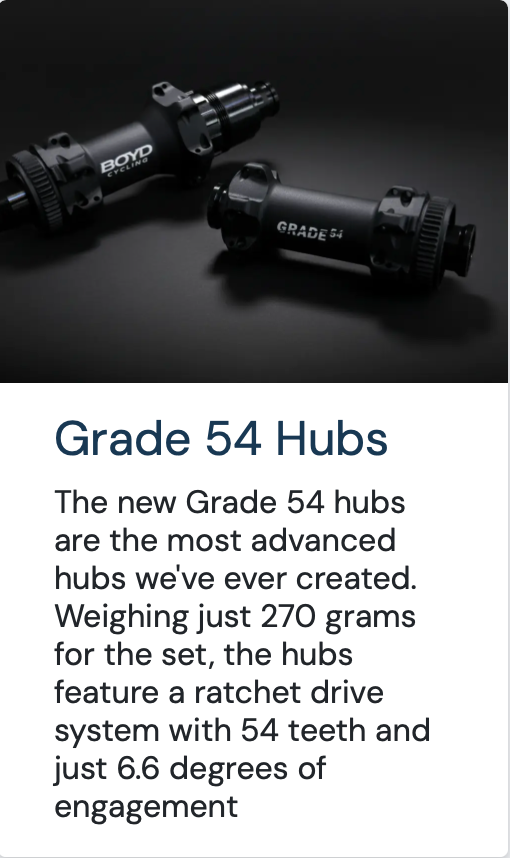

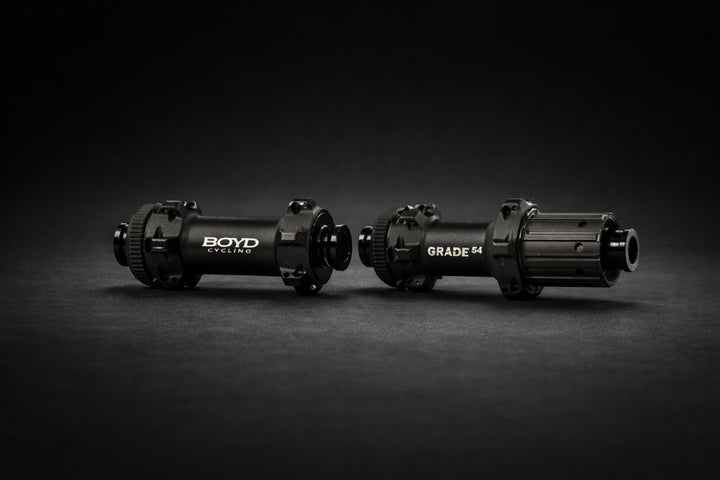

- Grade 54 hubs with 54-tooth ratchet system (6.6° engagement)
- Handbuilt with multiple stress-relief and tension cycles
- Tubeless ready with rim tape and valves pre-installed
- Offset rim bed improves spoke tension balance and wheel durability
Technical Specifications
| Wheel Size |
700c |
| Internal Width |
26mm |
| External Width |
32mm |
| Rim Depth |
25mm |
| Rim Type |
Tubeless Ready Clincher |
| Spoke Count |
24 Front / 24 Rear |
| Lacing |
2X Front and Rear |

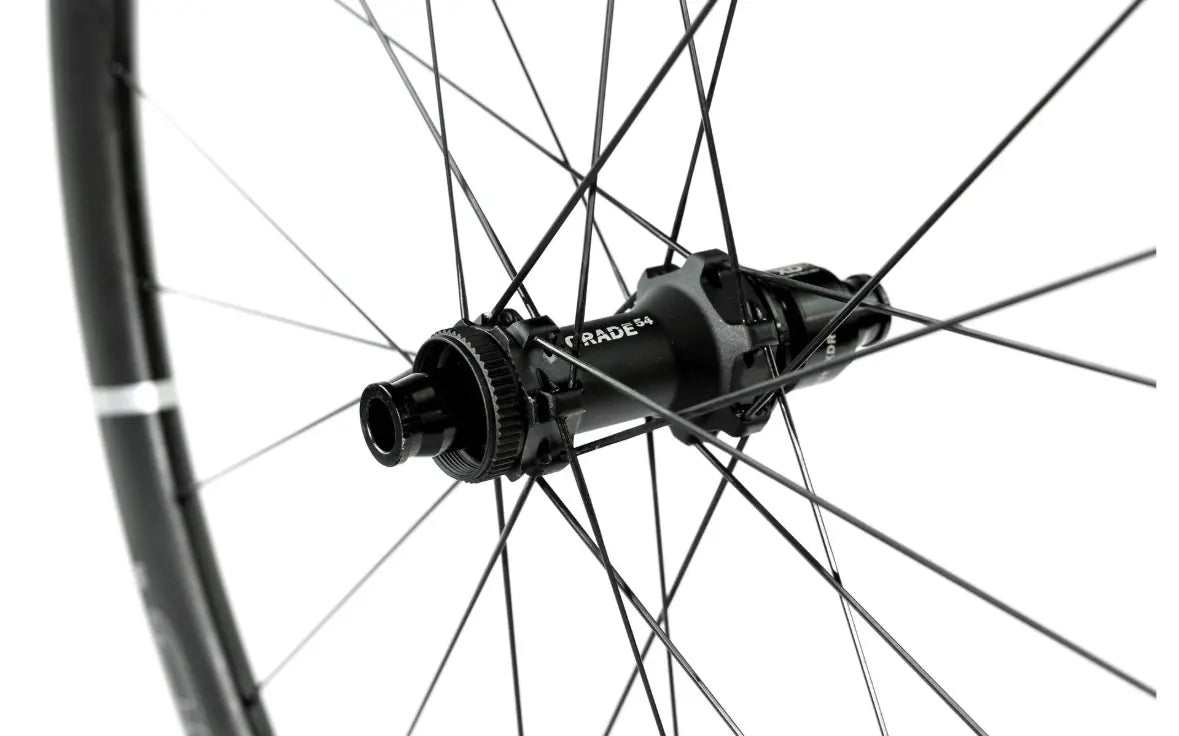

| Hubs |
Boyd Grade 54 Ratchet Hub |
| Engagement |
54T / 6.6° |
| Bearings |

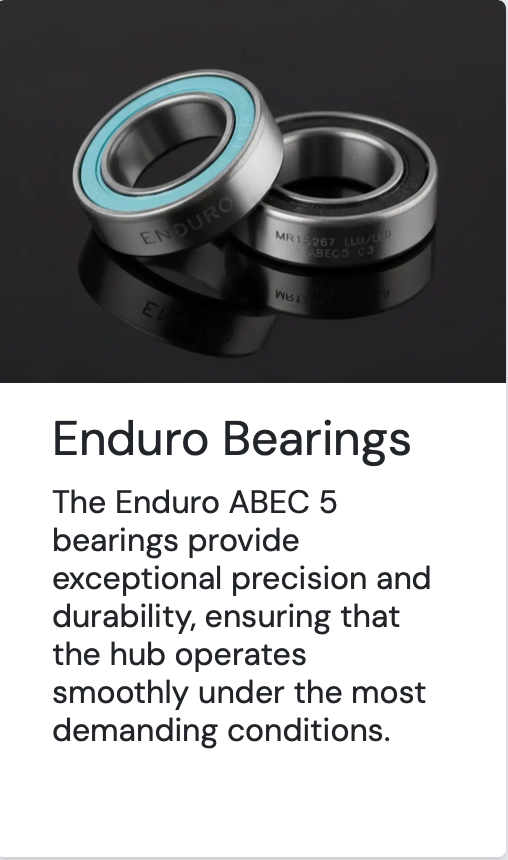

Enduro ABEC-5 |
| Spokes |
Pillar Wing 20 |
| Brake Type |
Centerlock Disc |
| Weight |
1145g (set) |
| Included |
Tubeless Tape + Valves Installed |
Compatibility & Technical Notes
- Designed for gravel and all-road bikes using 700c wheels
- Optimized tire range: 36mm to 55mm
- Centerlock rotor interface (requires compatible rotors or adapters)
- Available with multiple freehub bodies (Shimano HG, SRAM XDR, etc.)
- Tubeless ready—requires sealant for setup
- Compatible with thru-axle disc brake frames
- NOT compatible with rim brake bikes
- NOT ideal for narrow road tires under ~32mm (rim profile too wide)
Service / Ownership Context
This is a premium gravel wheelset designed for riders who want both durability and low weight. The ratchet hub system is easy to service and holds up well under high torque loads, making it a strong choice for climbing, loaded riding, and rough terrain use.
Fit & Use Signals
-
Good Fit: Gravel bikes running 40–50mm tires
-
Good Fit: Riders upgrading from stock alloy wheelsets
-
Good Fit: Mixed terrain, bikepacking, and endurance gravel
-
Not A Fit: Road bikes running narrow tires (<32mm)
-
Not A Fit: Rim brake setups
-
Not A Fit: Riders needing ultra-aero deep-section wheels
26mm internal width is ideal for modern gravel setups—most riders will pair this with 40–50c tires for best performance. Running anything under ~35c will negatively affect tire profile and ride feel. The 54T ratchet hub gives fast engagement without being overly high maintenance. Always confirm freehub body at checkout—this is a common mistake. Strong upsell: tubeless sealant, rotors (centerlock), and cassette install. Also worth noting: these are light for gravel wheels, but still durable enough for aggressive riding—good middle ground between race and adventure setups.
