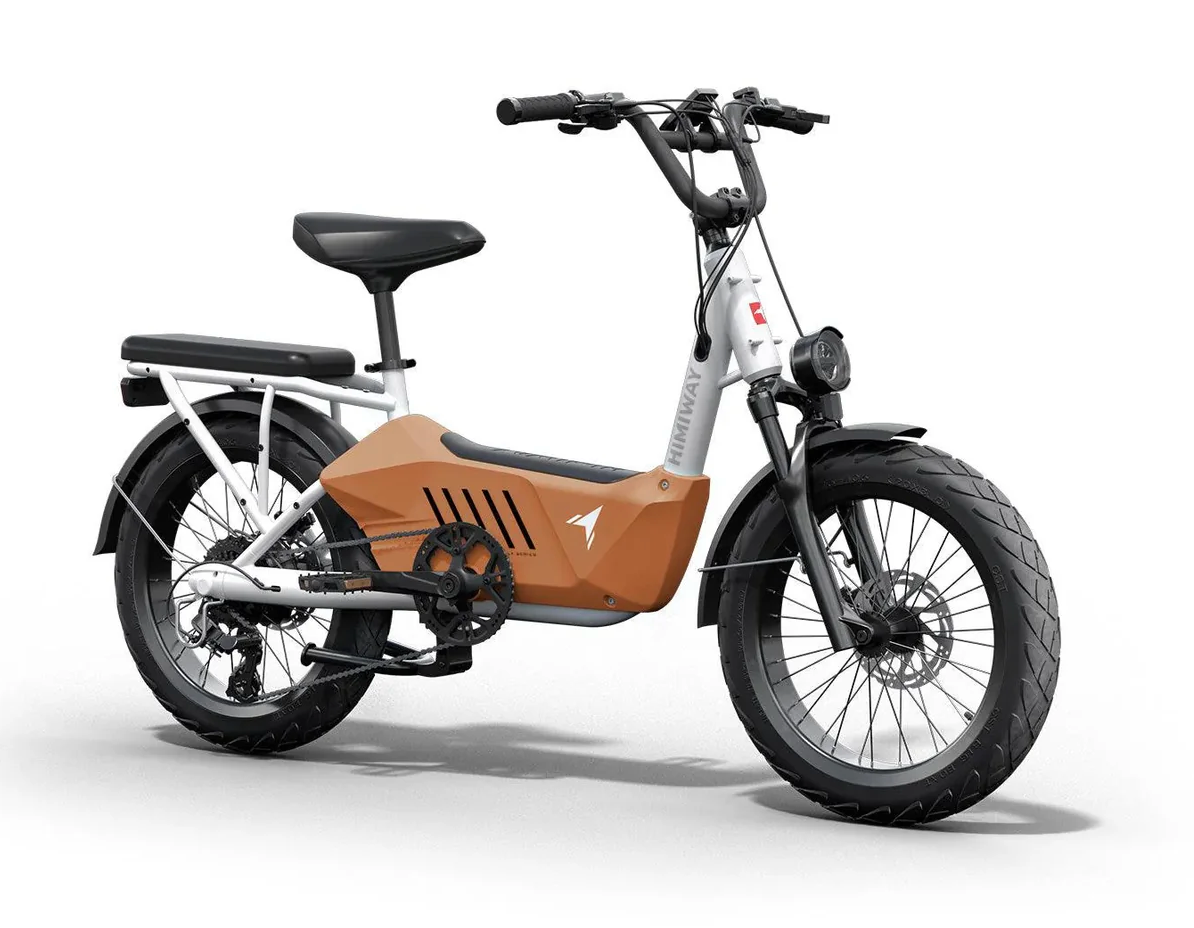

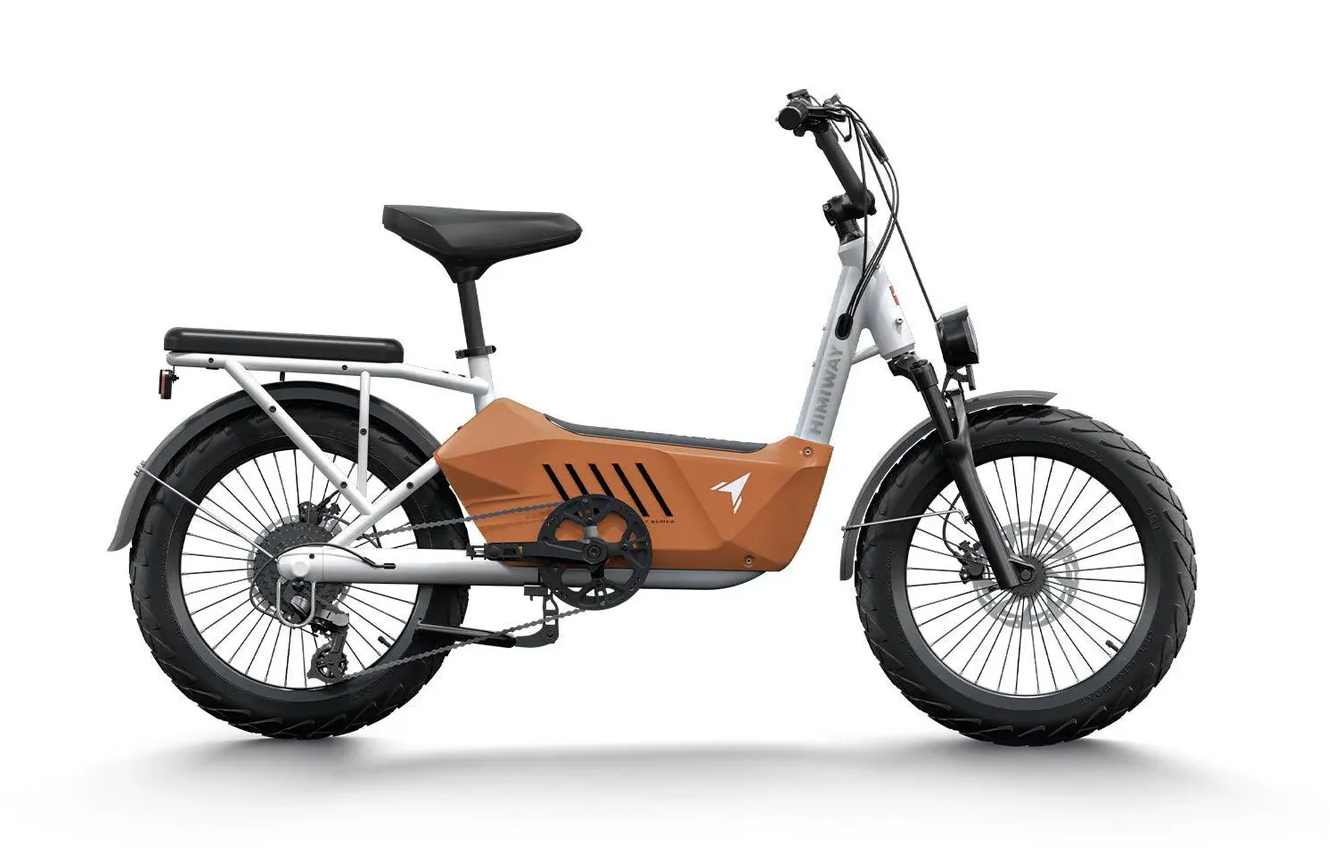

Himiway C3 Cargo E-Bike – 750 W Hub Motor, 48 V 20 Ah Battery

The Himiway C3 is a compact cargo-focused electric bike built around a reinforced 6061 aluminum frame and a 20" wheel platform. It is designed to support higher payloads while maintaining a manageable overall footprint for urban and utility use.

The bike uses a 750 W brushless geared rear hub motor paired with a 48 V, 20 Ah battery using Samsung/LG cells, managed by a 48 V / 22 A controller. Pedal assist is supported by a multi-sensor system incorporating torque, speed, and brake sensors, along with a thumb throttle. Claimed range is 60–80 miles depending on assist level, load, terrain, and riding conditions.

Up front, a TRAMA coil suspension fork provides 60 mm of travel with a 135 mm thru-axle for added stiffness. Wheel builds use heavy-gauge 12G spokes and aluminum rims designed for load-bearing use. The bike is equipped with 20" CST tires and hydraulic disc braking with 180 mm rotors.

The drivetrain consists of a Shimano Altus M310 7-speed rear derailleur, Shimano MF-TZ500-7 freewheel (14–28T), a KMC Z8.3 EPT chain, and a 44T alloy crankset with 145 mm crank arms. Additional equipment includes a Himiway C2 LCD display, integrated 48 V LED lighting, wide handlebar cockpit, aluminum pedals, and a heavy-duty aluminum kickstand. Rated rider height range is 5'2" to 6'3", with a maximum payload capacity of 440 lb including the battery.

Fit & Use Signals

• Rear hub motor cargo-style electric bike

• 750 W motor with 48 V 20 Ah battery system

• Torque, speed, and brake sensors integrated into pedal assist

• Designed for carrying heavier loads compared to standard e-bikes

• 20" wheel platform for stability under cargo weight

• Maximum payload capacity of 440 lb, including rider and cargo

• Rider height range approximately 5'2"–6'3"

• 7-speed Shimano drivetrain not mechanically driven by the motor

• Total system weight approximately 80 lb with battery installed

• Uses Himiway-specific battery, motor, and display components
