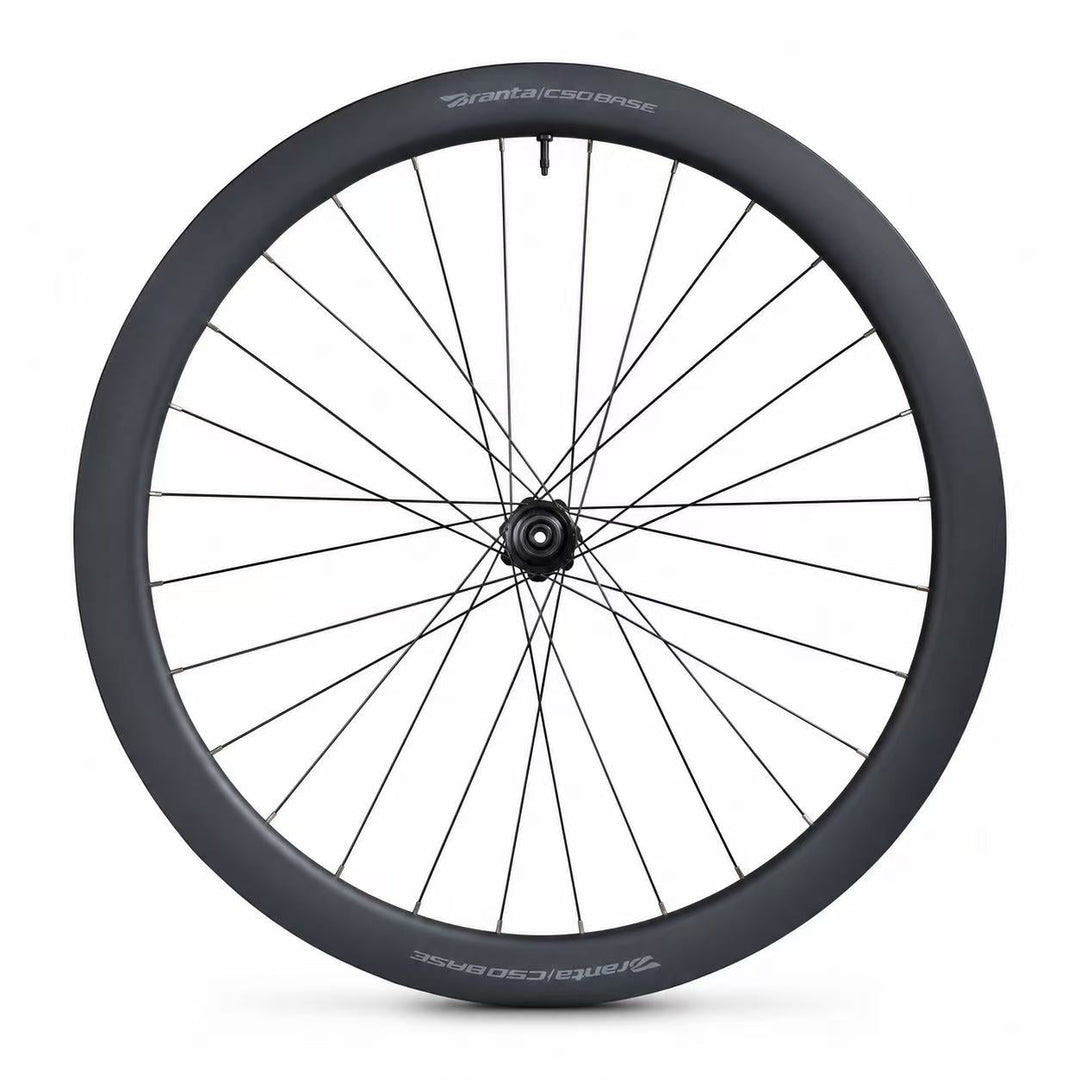

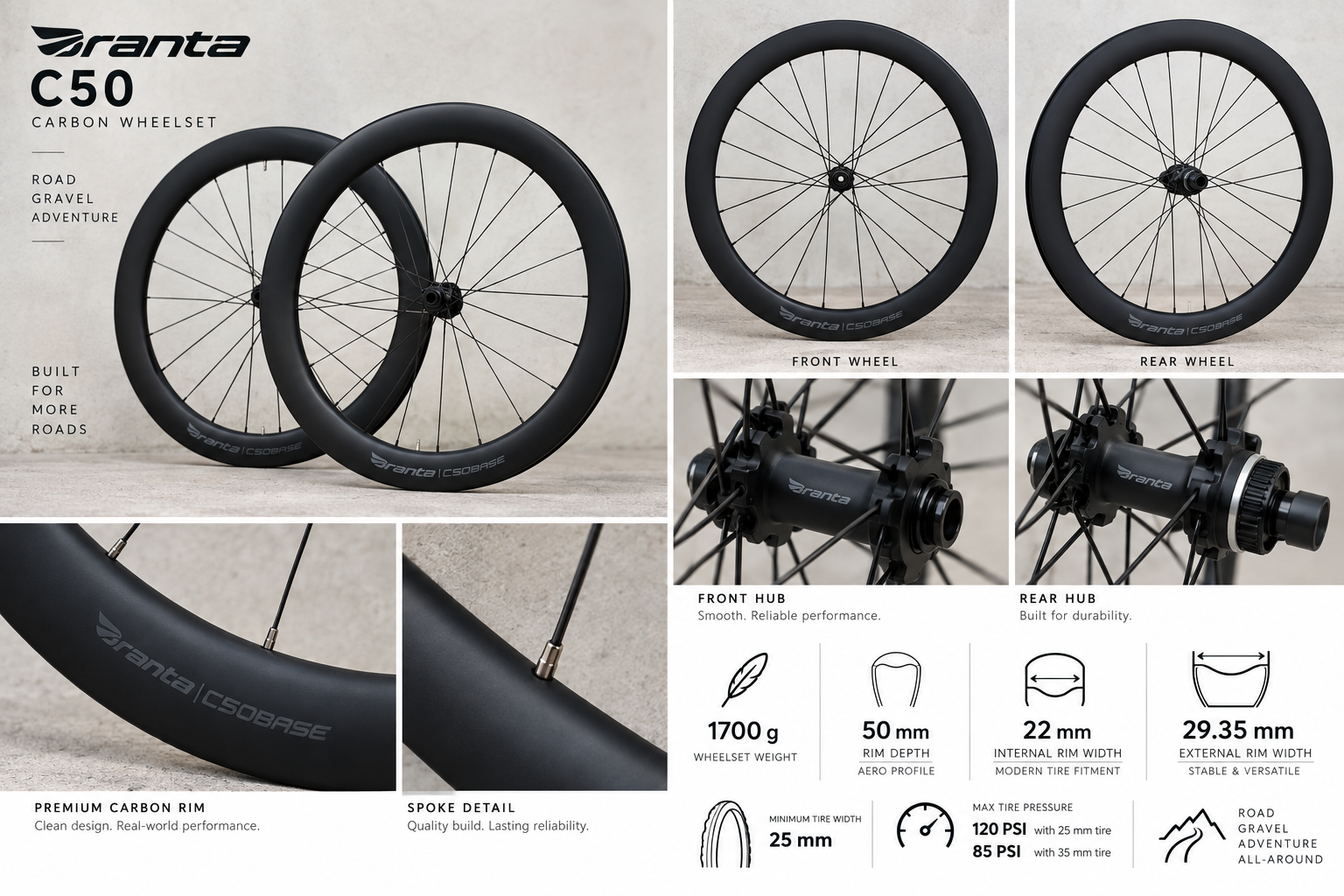

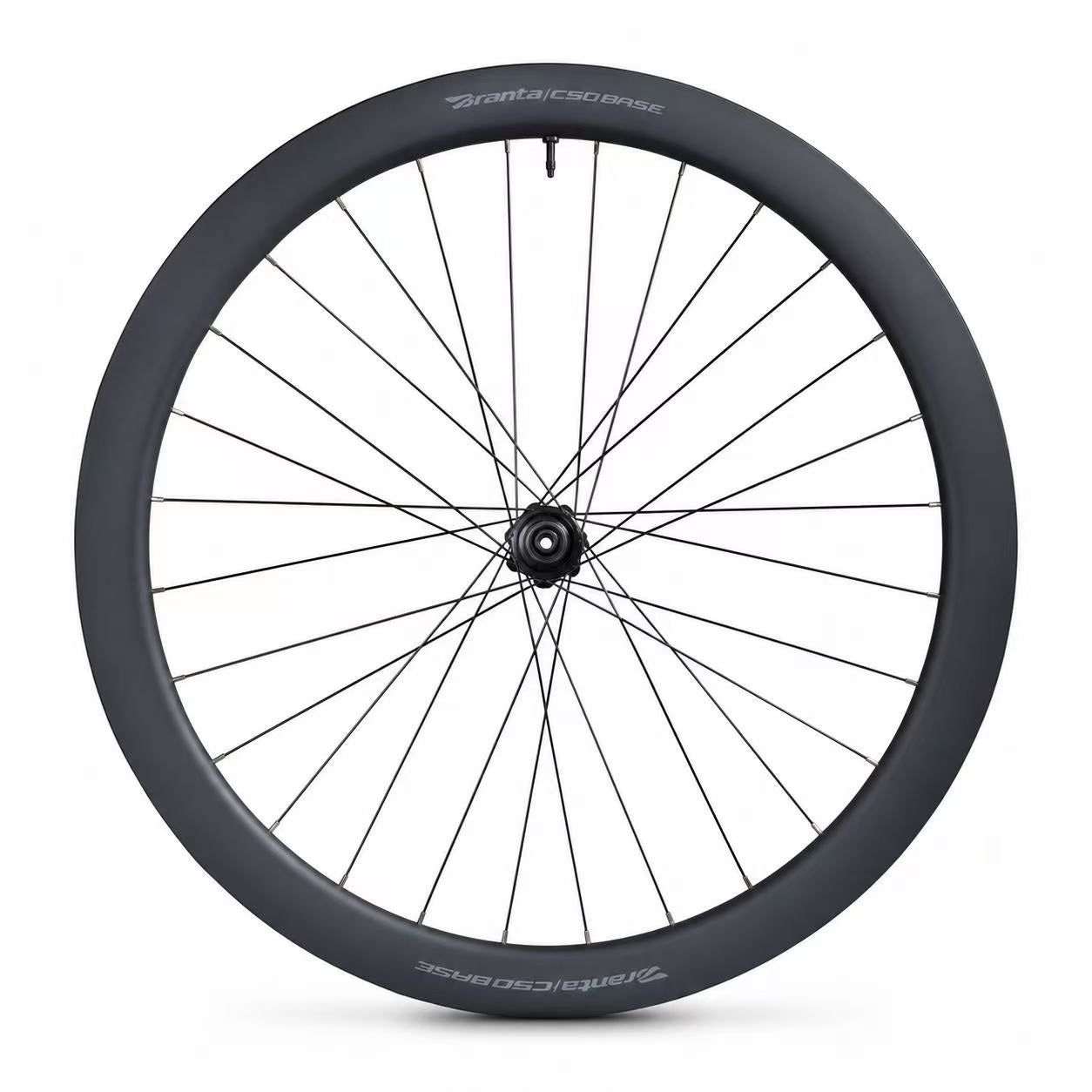

The XDS Branta C50 carbon wheelset gives your road build a matching front and rear pair with 50 mm deep carbon rims and straight-pull steel spokes. Each wheel uses 24 spokes.
Rims and tire fit
The rims measure 22 mm internally and 29.3 mm externally, with a stated tire-width range of 25–35 mm. Check your frame and fork clearance as well as tire compatibility before installation.
Brake and drivetrain fit
These wheels use Centerlock disc rotor mounts. Match the rear freehub to your cassette when selecting your wheelset; the cassette interface and the rotor mount serve separate purposes.
Sold as a complete pair
Each purchase includes one front wheel and one rear wheel. Wheels are not sold individually. X-Lab specifies that thru-axles are not included.
Axles and tubeless setup

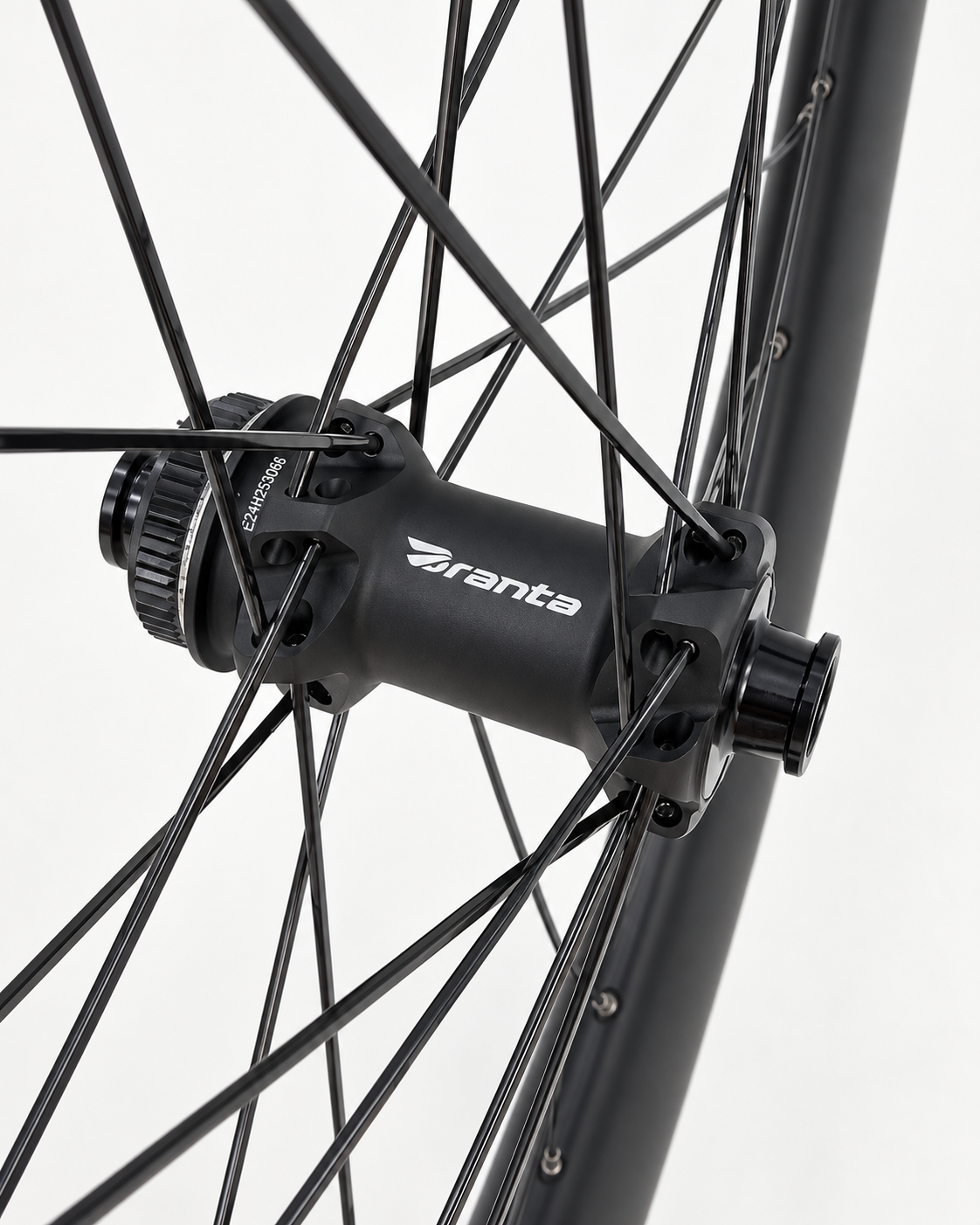

- Front: 12 × 100 mm thru-axle interface. (Thru-Axles not included)
- Rear: 12 × 142 mm thru-axle interface. (Thru-Axles not included)
- Tubeless compatible; tubeless valves are not included.
Check that your bike uses these axle dimensions and Centerlock rotors. Prepare the rim with suitable tubeless tape, valves and sealant as needed for your chosen tires. Thru-axles are not included.
HG 12-speed configuration

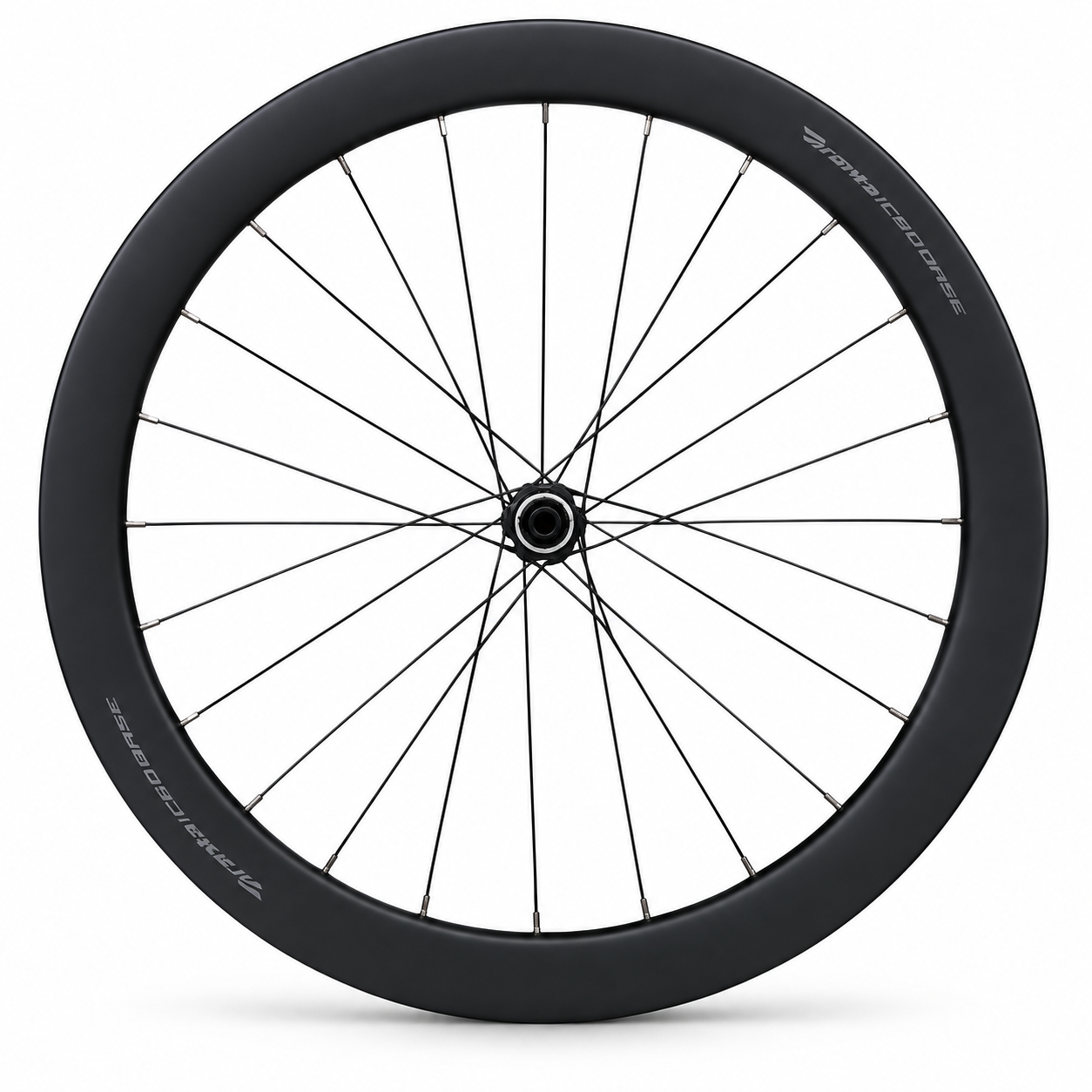

The rear wheel is supplied with the HG 12-speed freehub. Match your cassette’s mounting interface to the freehub; speed count alone does not establish compatibility.
