X-LAB SP5+ Electric Fitness Bike | Mid-Drive | Shimano CUES | 700c

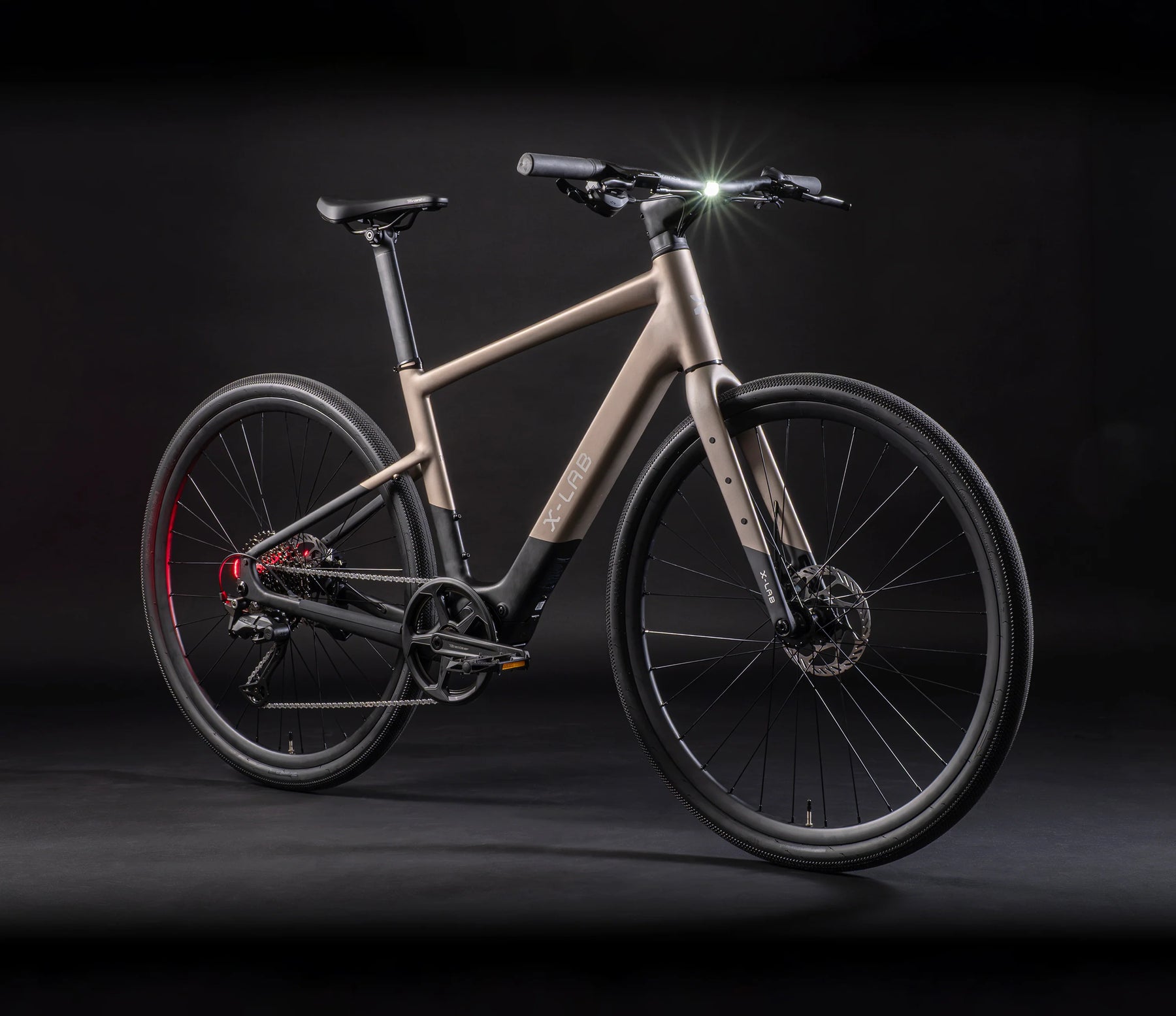

X-LAB SP5+ Electric Fitness Bike

A lightweight electric fitness bike that rides like a traditional bicycle—with an 85Nm mid-drive motor ready to give you an extra push whenever you want it.

The X-LAB SP5+ is built for riders who want the convenience of an e-bike without the weight, bulk, and disconnected ride feel of many traditional electric bicycles. At approximately 37 lbs, the SP5+ is remarkably light for a mid-drive e-bike, making it easier to maneuver, transport, store, and pedal even when the motor is turned off.

At the heart of the bike is the XDS X800 mid-drive motor, producing 250 watts of continuous power, up to 400 watts of peak power, and an impressive 85Nm of peak torque. A dual-sided torque sensor measures rider input and delivers assistance naturally, creating a smooth ride that feels more like amplified pedaling than a traditional hub-motor e-bike.

The integrated 339Wh lithium-ion battery uses LG battery cells and provides up to 43 miles of riding range on a single charge. A 3A charger can recharge the battery from 0–100% in approximately 3 hours and 15 minutes.

The SP5+ is configured as a Class 2 e-bike with both pedal assist and throttle operation up to 20 mph. Riders can also unlock Class 3 operation through the X-LAB Bikes mobile app where permitted by local regulations.

A Shimano CUES 9-speed drivetrain with an 11-46T cassette provides a wide mechanical gear range for hills, commuting, fitness rides, and mixed terrain. The 46T narrow-wide chainring helps keep the drivetrain simple and secure while maintaining efficient road speed.

Branta hydraulic e-bike brakes feature integrated motor cutoff switches, while 160mm front and rear rotors provide controlled braking performance. Integrated front and rear lighting—including a rear brake light—adds visibility for commuting and everyday riding.

Modern connectivity is built directly into the platform with Apple Find My anti-theft technology, Bluetooth connectivity, over-the-air firmware updates, app-based controls, and ride tracking.

Why Choose the X-LAB SP5+?

• Approximately 37 lb complete bike weight
• Powerful 85Nm mid-drive motor
• Natural-feeling dual-sided torque sensor
• Up to 43 miles of range
• Class 2 pedal assist and throttle
• Class 3 capability through the X-LAB app where legally permitted
• Shimano CUES 9-speed drivetrain
• Carbon fork for lower weight and improved ride quality
• Integrated front light, rear light, and brake light
• Apple Find My anti-theft integration
• Bluetooth connectivity and OTA firmware updates
• UL2271 and UL2849 certified electrical system

Motor & Electrical System

• Motor: XDS X800 Mid-Drive
• Continuous Power: 250W
• Peak Power: 400W
• Peak Torque: 85Nm
• Sensor: Dual-Sided Torque Sensor
• Battery: XDS Rechargeable Lithium-Ion
• Battery Capacity: 339Wh
• Battery Cells: LG
• Charger: 3A
• Charge Time: Approximately 3 hr 15 min from 0–100%
• Range: Up to 43 miles
• Speed: Class 2, 20 mph
• Throttle: Yes
• Class 3 Capability: Unlockable through X-LAB Bikes app where permitted

Frame & Fork

• Frame: XDS X6 Alloy
• Derailleur Hanger: UDH Compatible
• Fork: XDS Carbon
• Front Axle: 100 x 12mm Thru-Axle

Drivetrain

• Rear Derailleur: Shimano CUES RD-U4000
• Shifter: Shimano CUES 9-Speed
• Cassette: Shimano CS-LG300, 11-46T
• Crankset: Branta Alloy, 46T Narrow-Wide
• Chain: KMC E-GLIDE-S
• Drivetrain: 1x9

Brakes

• Brake System: Branta EC215D Hydraulic E-Bike Brakes
• Calipers: 2-Piston
• Levers: 3-Finger
• Motor Cutoff: Integrated Brake Cutoff Switch
• Front Rotor: 160mm Branta Z8
• Rear Rotor: 160mm Branta Z8

Wheels & Tires

• Wheelset: Branta Alloy E-Bike Wheelset
• Wheel Size: 700c
• Tires: Branta R240, 700 x 40c
• TPI: 30
• Maximum Tire Clearance: 45c with full-wrap fender

Cockpit & Contact Points

• Handlebar / Stem: Branta Alloy Integrated
• Handlebar Width: 680mm
• Stem Length: 90mm
• Rise: 6°
• Backsweep: 9°

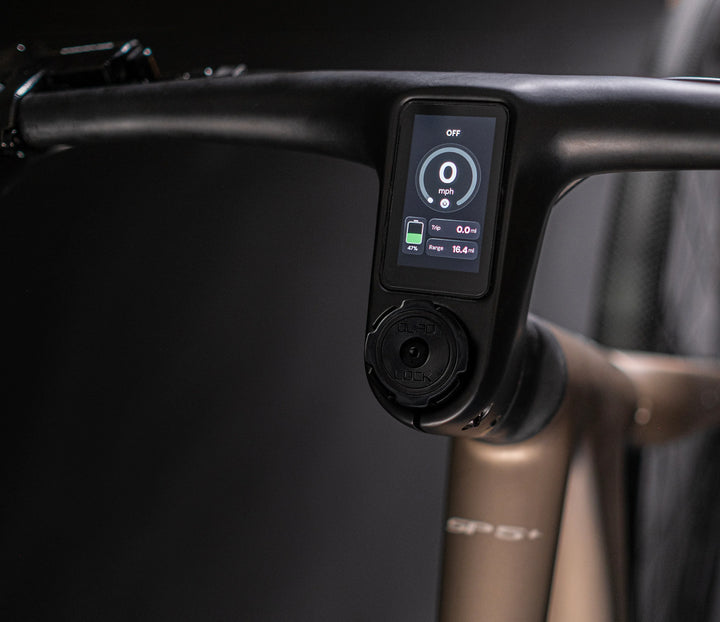

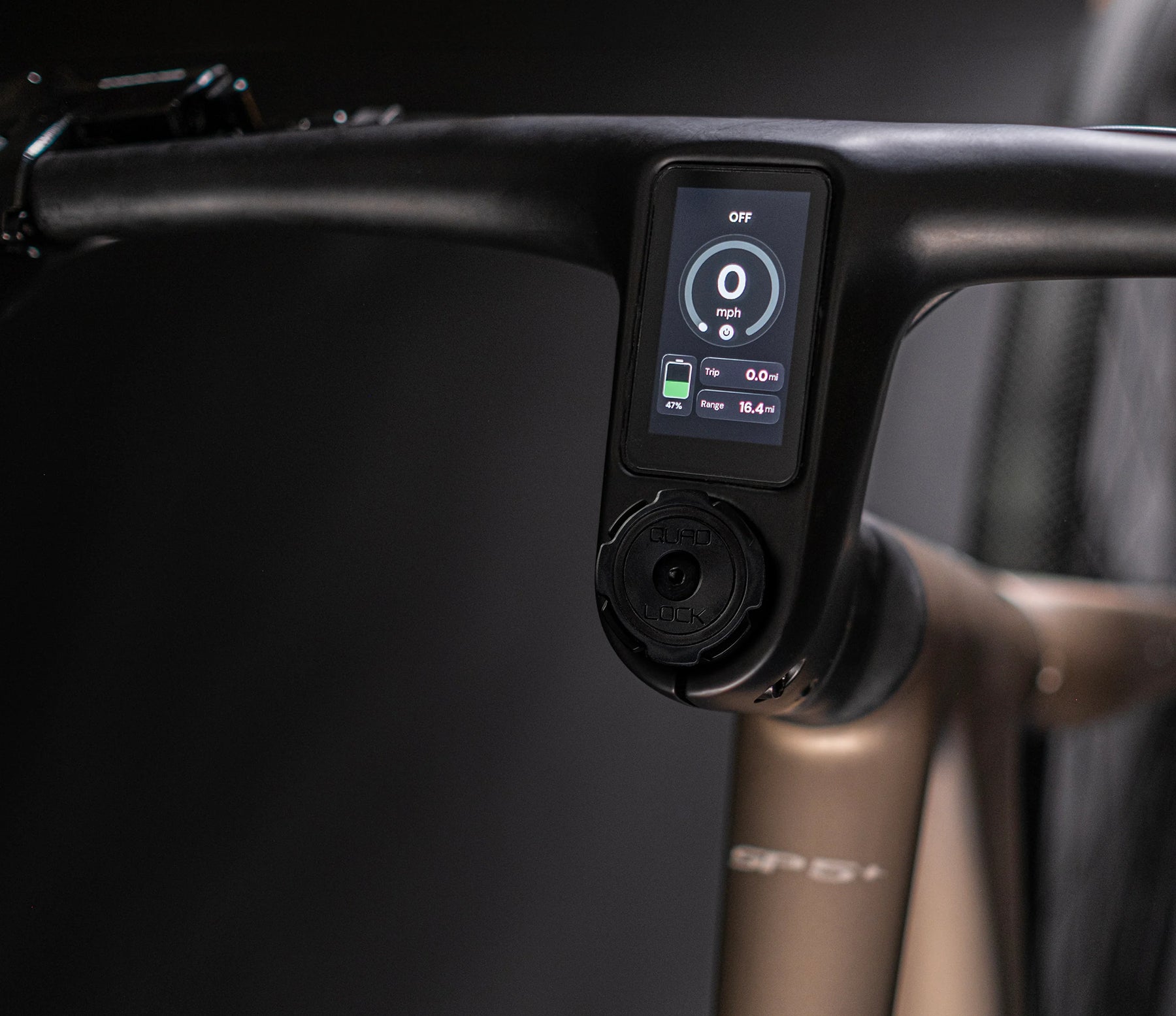

• Display: Integrated
• Front Light: Integrated into cockpit
• Seatpost: XDS Alloy Aero, 350mm
• Saddle: Branta SRX+
• Phone Mount: Quad Lock Mount

Lighting & Connectivity

• Integrated front light

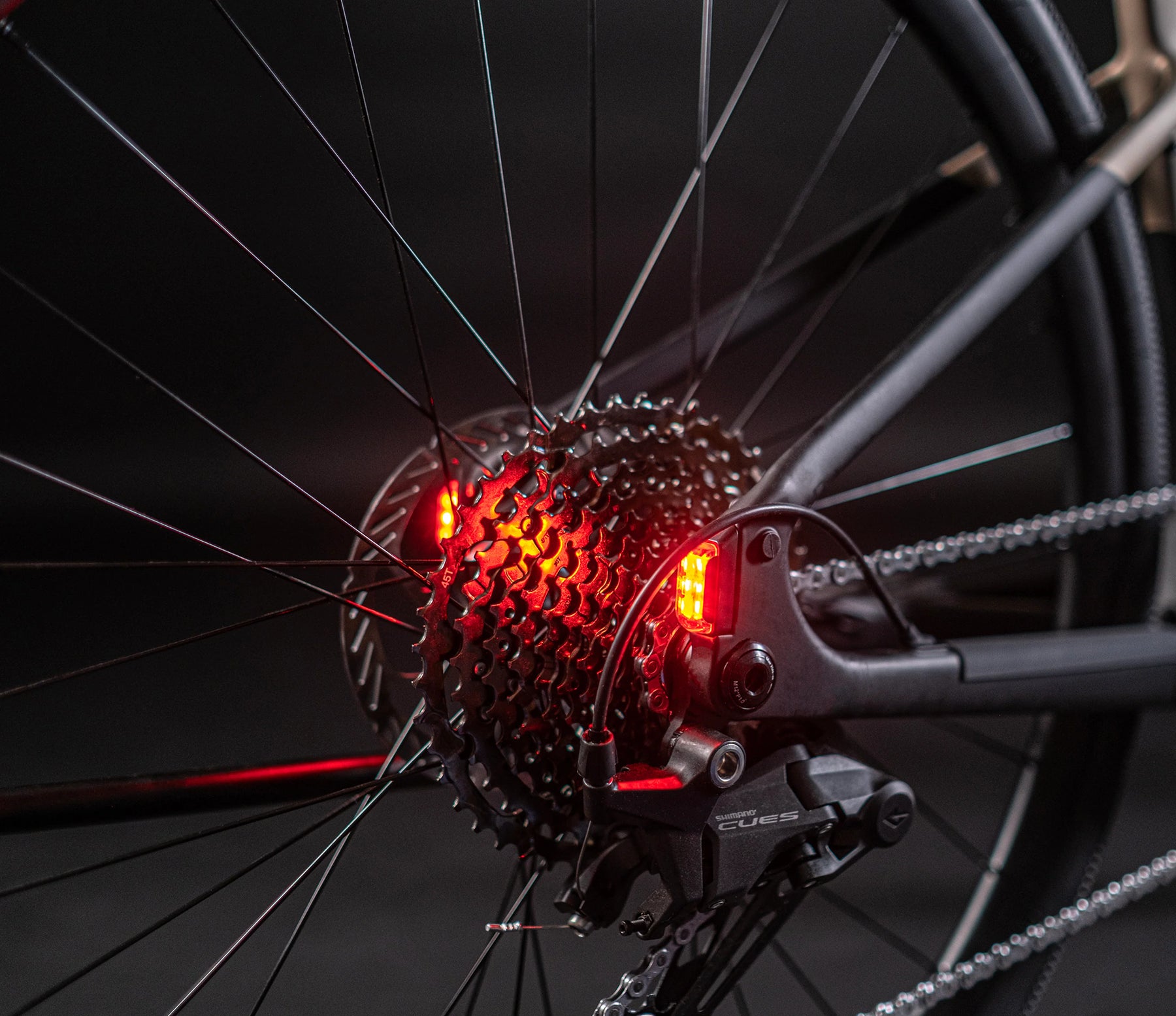

• Integrated rear taillight
• Integrated brake light
• Apple Find My anti-theft technology
• Bluetooth connectivity
• Over-the-air firmware updates
• X-LAB mobile app integration

Safety & Compliance

• Electrical Certification: UL2849
• Battery Certification: UL2271
• Complete Bike Ingress Rating: IP54
• Battery Ingress Rating: IPX7
• Motor & Electronics Ingress Rating: IPX6
• Maximum Load: 265 lbs / 120 kg

Weight

• Complete Bike Weight: Approximately 37.01 lbs / 16.79 kg in size Large

Available Colors

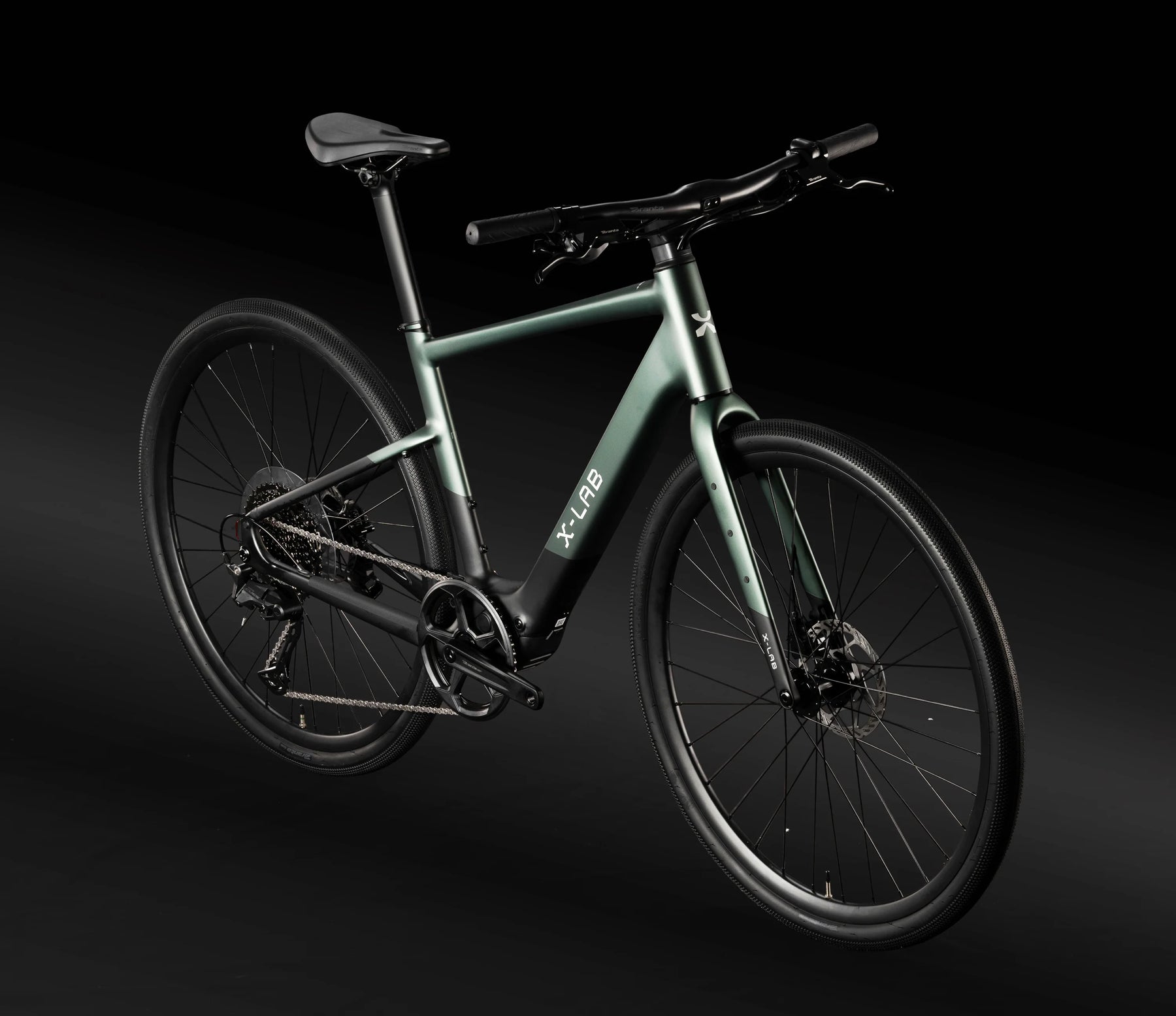

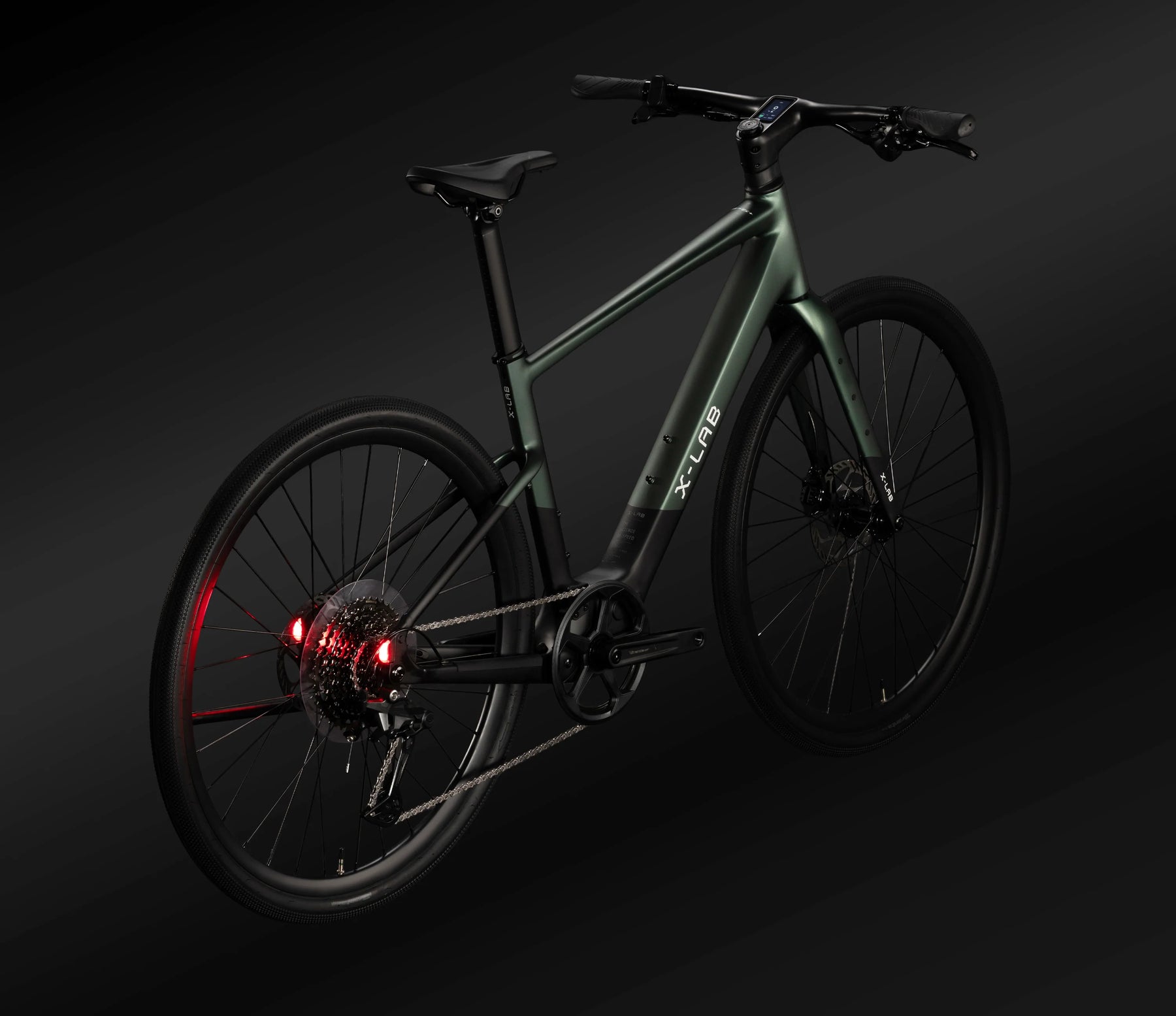

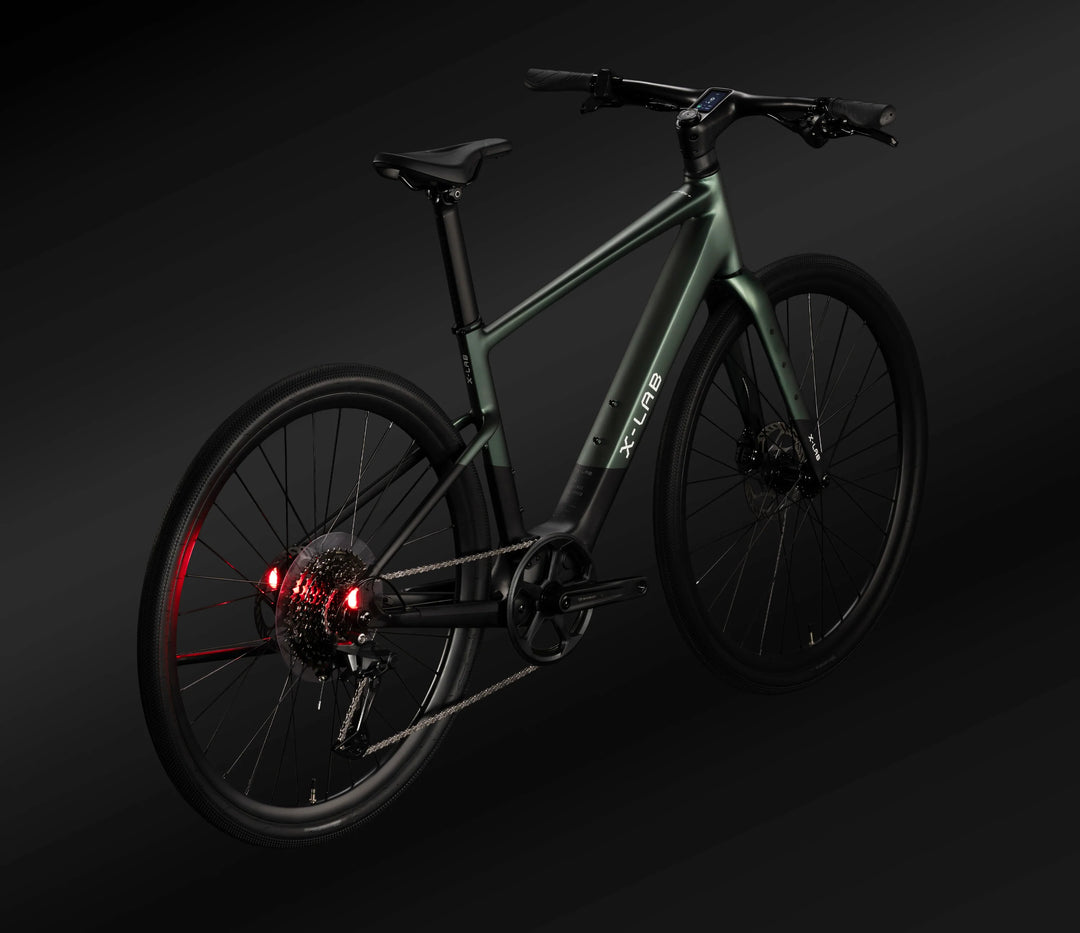

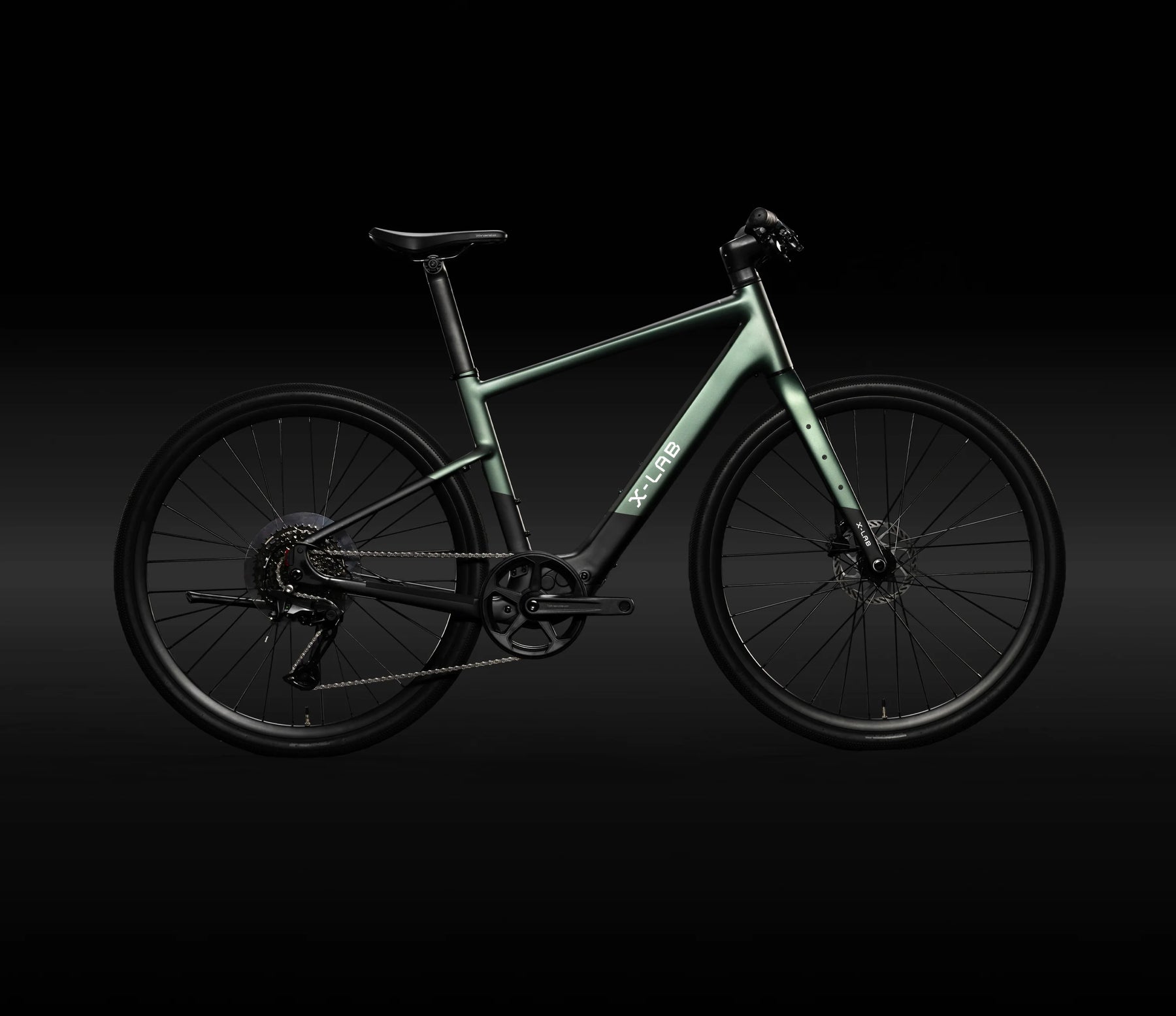

• Pinecrest Green

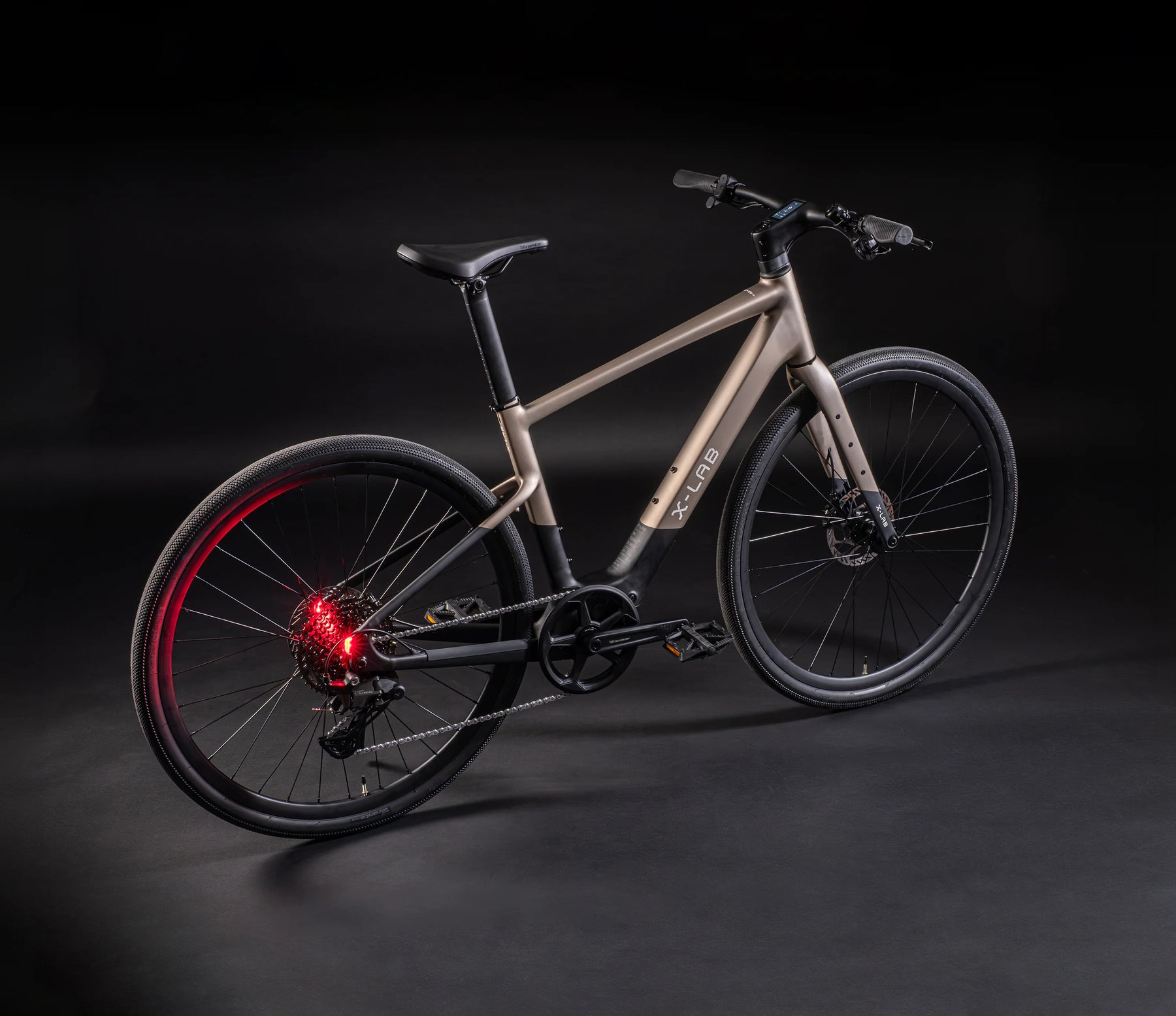

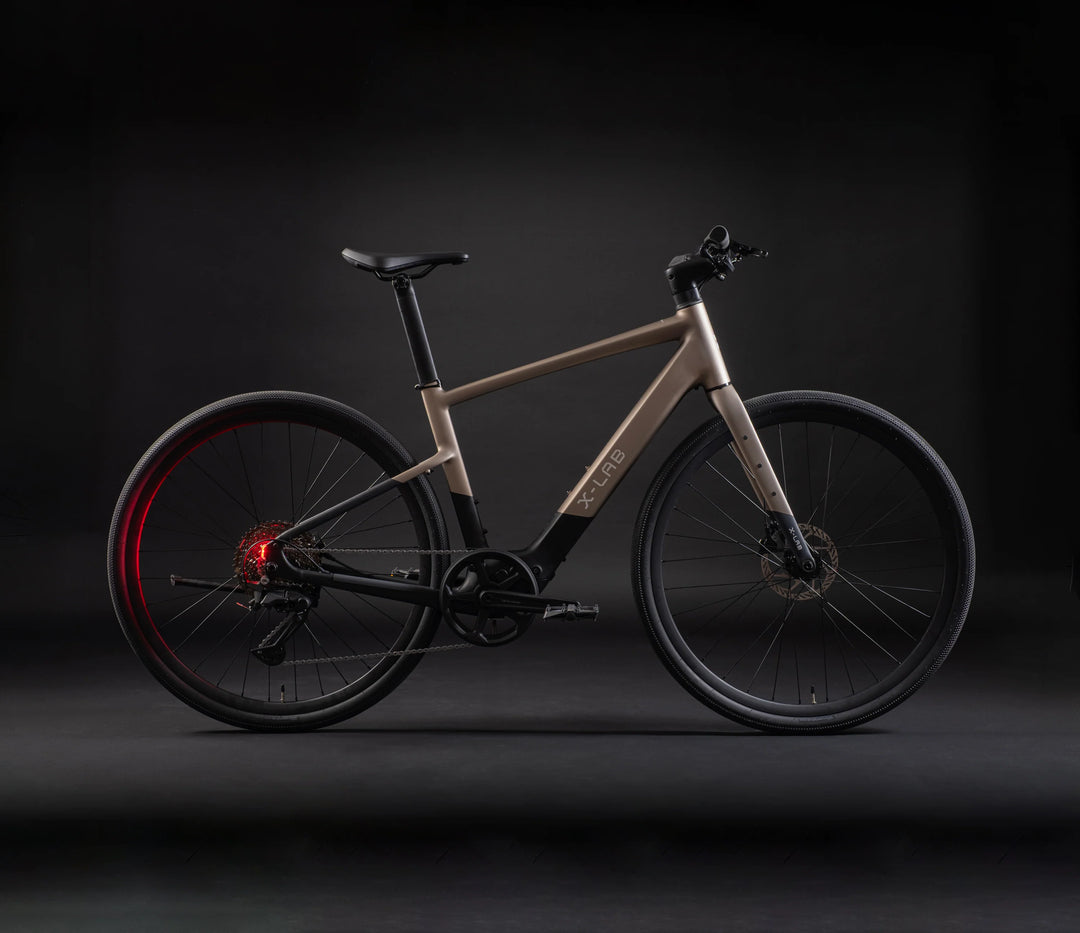

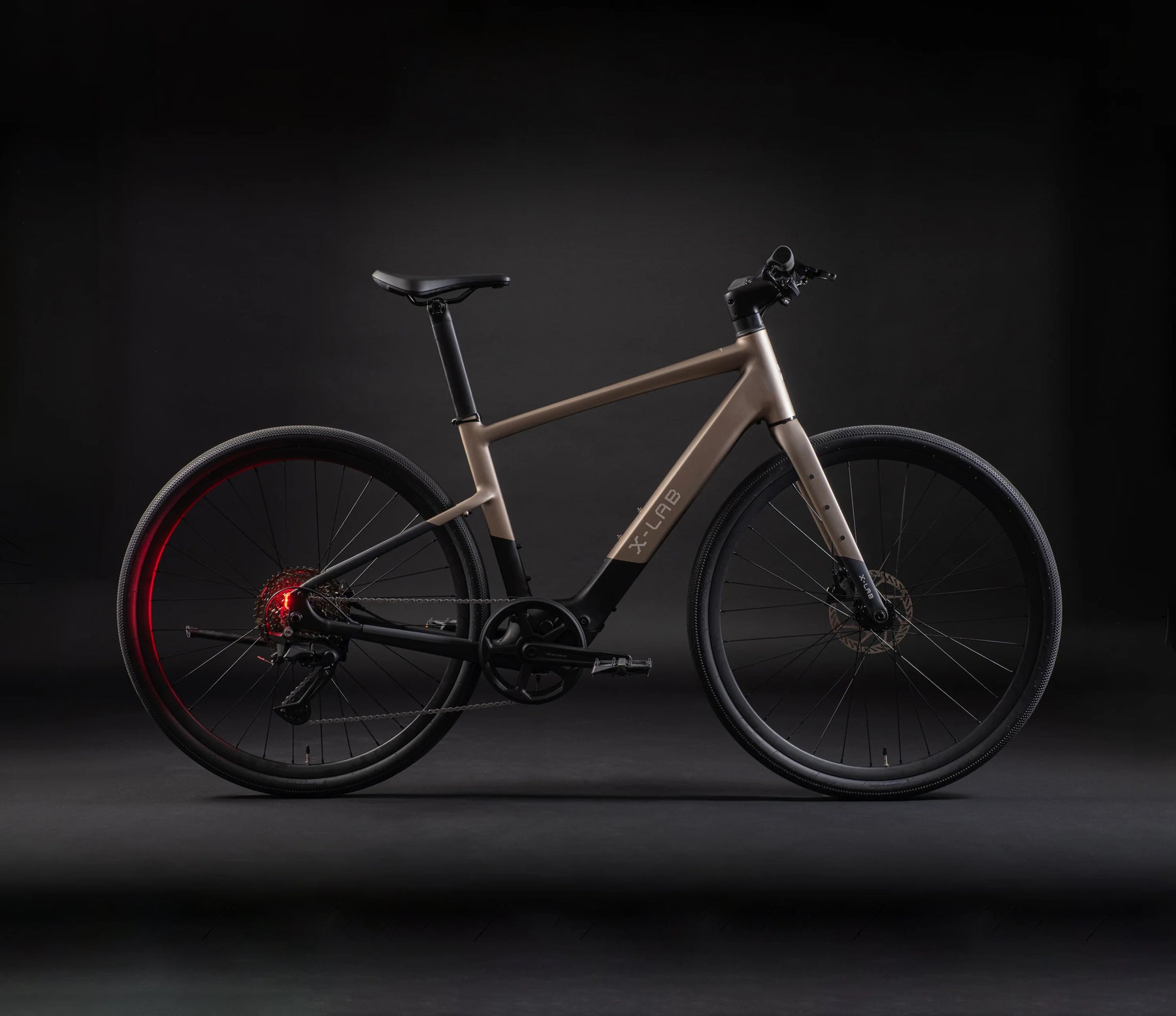

• Nimbus

Available Sizes

• Small
• Medium
• Large

Who Is the SP5+ For?

The SP5+ is particularly well suited to commuters, fitness riders, recreational cyclists, and riders who want electric assistance without giving up the handling and pedaling characteristics of a traditional bicycle. Its lightweight chassis also makes it a strong option for riders who need to carry an e-bike up stairs, load it onto a vehicle, or regularly move it in and out of storage.

Before You Buy

• This bicycle ships as a professionally assembled and serviced electric bicycle through authorized X-LAB dealers.
• Maximum assisted speed and throttle regulations vary by state and municipality.
• Class 3 functionality should only be enabled where legally permitted.
• Actual range varies with rider weight, terrain, wind, temperature, assist level, tire pressure, and riding conditions.
• Specifications and components may change as part of X-LAB's continuous product improvement program.

The X-LAB SP5+ stands out because it doesn't try to make an e-bike feel like a motorcycle. Instead, it starts with a lightweight fitness-bike platform and adds a powerful, quiet mid-drive system, intelligent connectivity, and practical commuting features. For riders who still want to pedal, exercise, and enjoy the feel of a bicycle—but want assistance when the road gets longer or steeper—the SP5+ is an exceptionally compelling platform.
