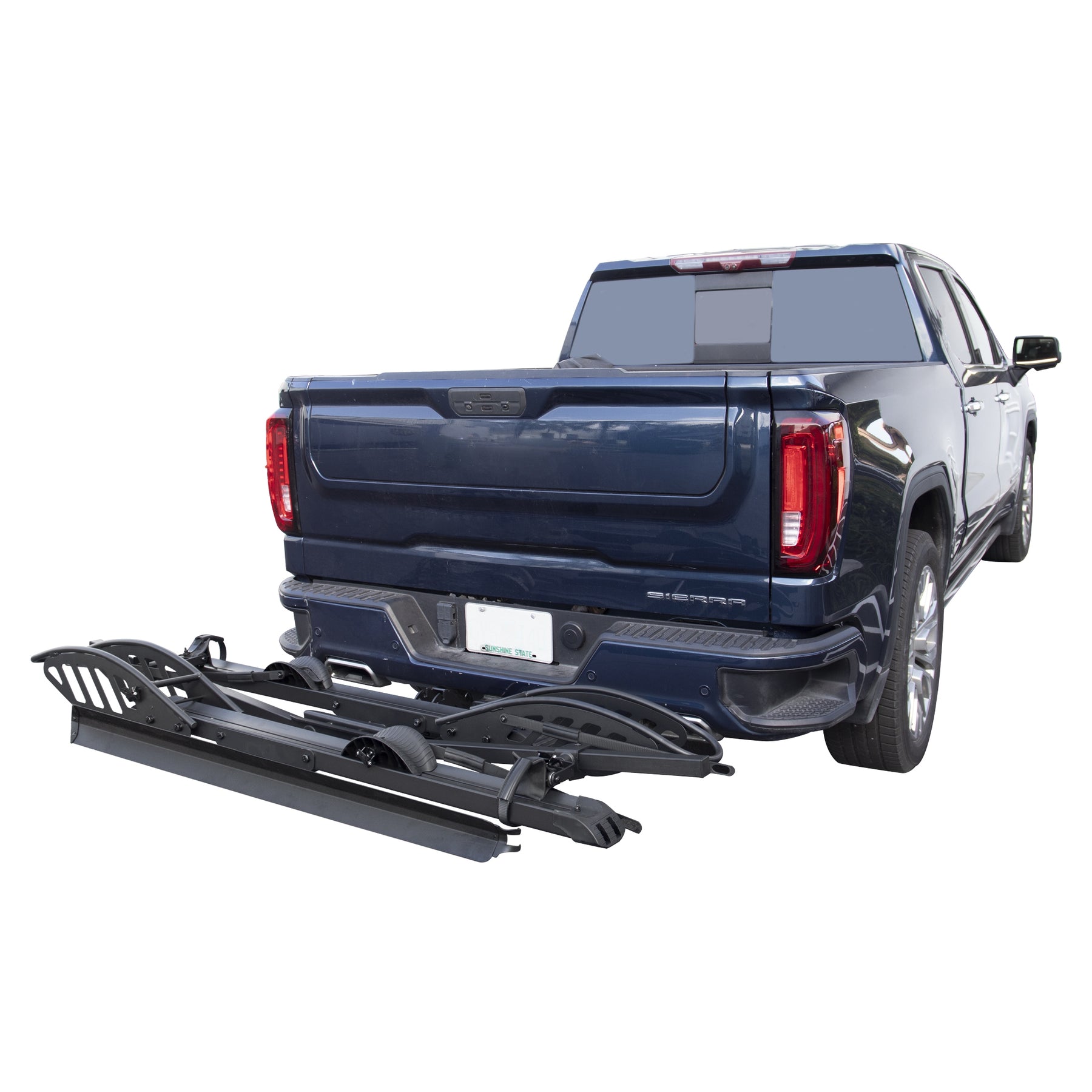

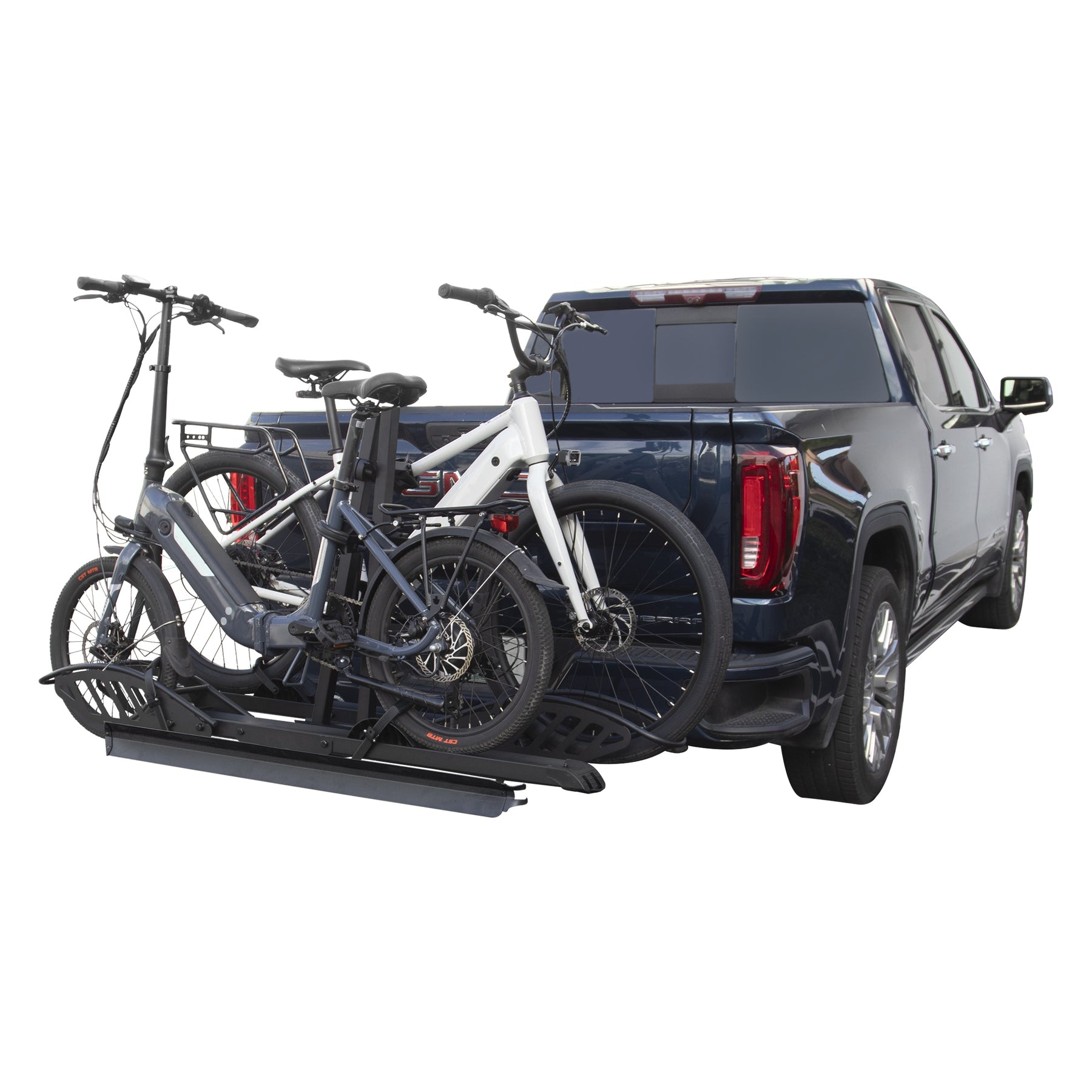

The Sunlite HRT-230 Sport Tray hitch rack is built to carry heavier bicycles including fat bikes and e-bikes. With a total carrying capacity of 200 lbs, it is designed for riders transporting modern electric bikes or wide-tire mountain bikes.
This tray-style rack supports bicycles with 20–29 inch wheels and tires up to 5 inches wide. A loading ramp makes it easier to roll heavier bikes into place instead of lifting them.
Key Functional Details
- Tray-style hitch rack for two bicycles
- Compatible with fat bikes and e-bikes
- Total maximum weight capacity: 200 lbs
- Fits 20" – 29" wheel sizes
- Supports tires up to 5 inches wide

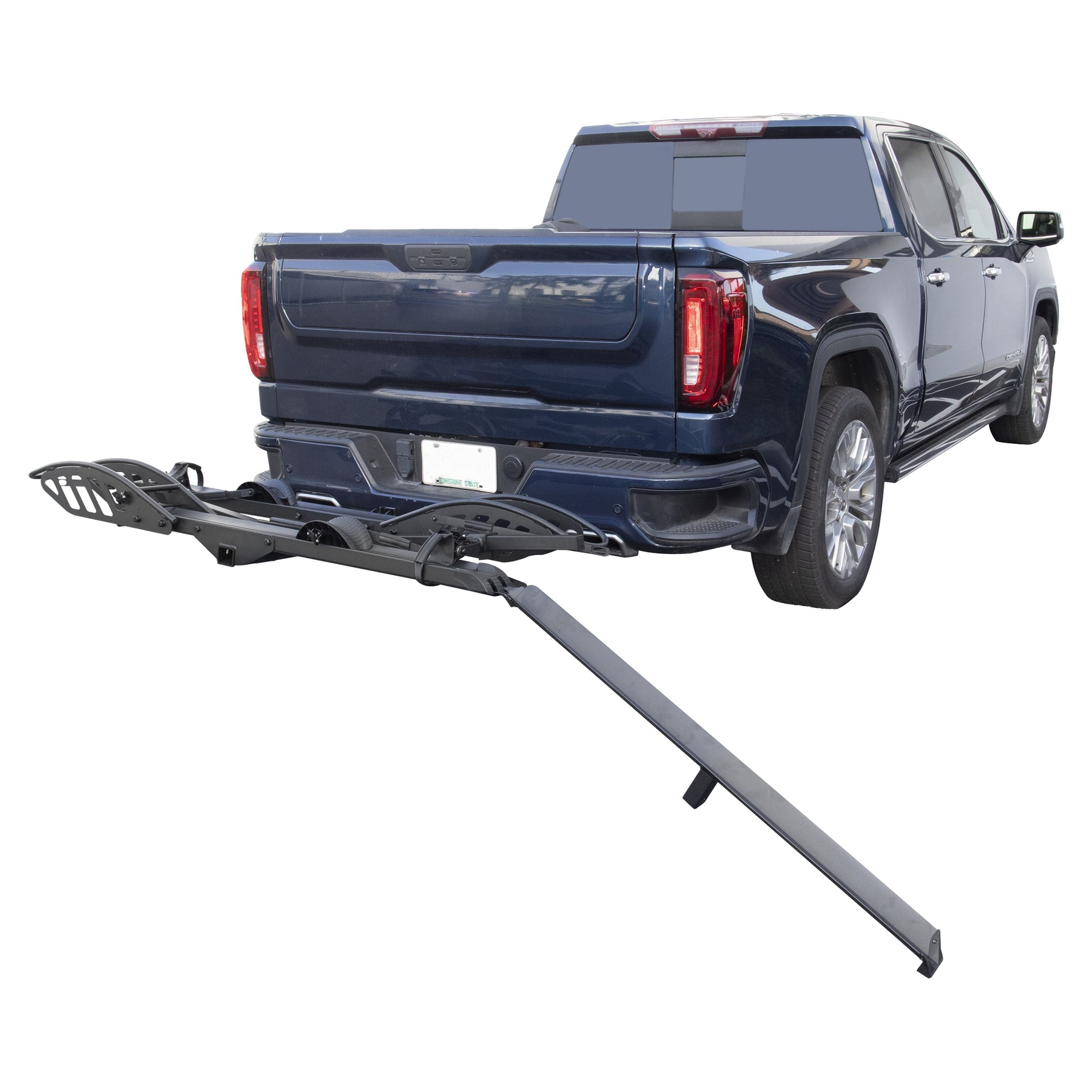

- Includes loading ramp for easier bike loading
- Three-point attachment system
- Anti-scratch frame contact design

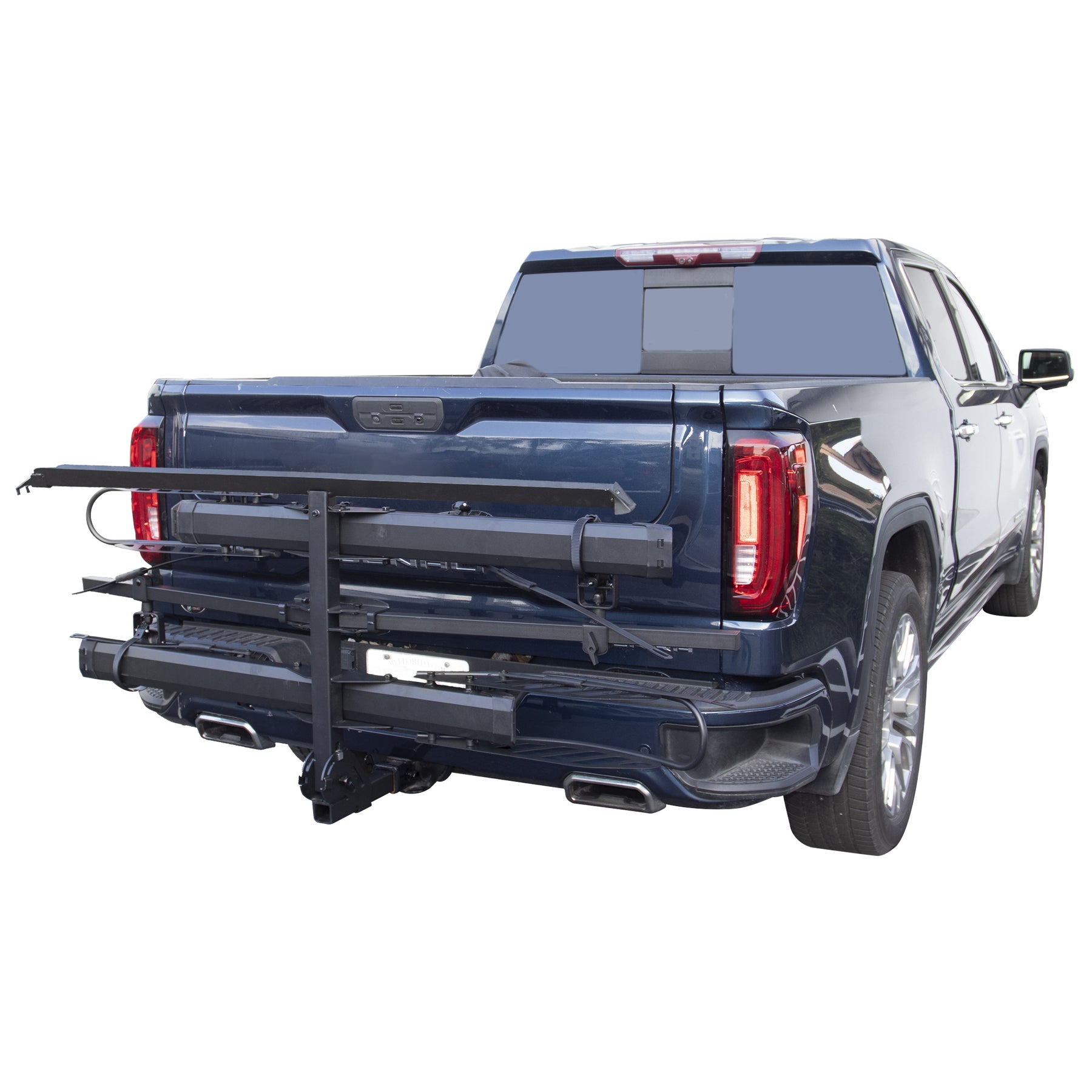

- Rack folds flat against vehicle when not in use
- Tilt-down function allows trunk or tailgate access
- Steel base with aluminum wheel trays
- Rust-resistant coating for weather protection
- Platform Type: Hitch-mounted bike rack
Compatibility & Technical Notes
- Requires a 2" receiver hitch (Class III, IV, or V)
- Maximum combined bike weight: 200 lbs
- Maximum supported wheelbase: 50 inches
- Fits bikes with 20"–29" wheels
- Fits tires up to 5" wide (fat bike compatible)
- Not designed for use on trailers, fifth wheels, or RVs
- Not designed for use on front vehicle hitch mounts
- Vehicle hitch must be properly rated for rack weight plus bicycles
- Platform Type: Vehicle hitch transport system
Service / Ownership Context
This rack is intended for hitch-mounted vehicle transport. Periodically inspect bolts, straps, and contact points for wear. Keep pivot points clean and lubricated to maintain smooth folding and tilting functions.
Fit & Use Signals
-
Good Fit: You transport heavy e-bikes or fat bikes.
-
Good Fit: Your vehicle has a 2" hitch receiver.
-
Good Fit: You want a ramp-assisted loading system.
-
Not A Fit: Your vehicle has only a 1.25" hitch.
-
Not A Fit: You need a rack for RV or trailer use.
-
Not A Fit: Your bike wheelbase exceeds 50".
This rack sells well for e-bike customers because of the ramp. Lifting a 70 lb bike onto a rack is hard for many riders. Always check combined bike weight. Two heavy e-bikes can push limits. Wheelbase limit (50") matters for long wheelbase bikes and some cargo bikes. Confirm vehicle hitch rating. Hitch capacity must include rack weight plus bikes. Tray racks are usually more stable than hanging racks for fat bikes.
