Shimano K05S-RX Resin Disc Brake Pads | Pair with Spring

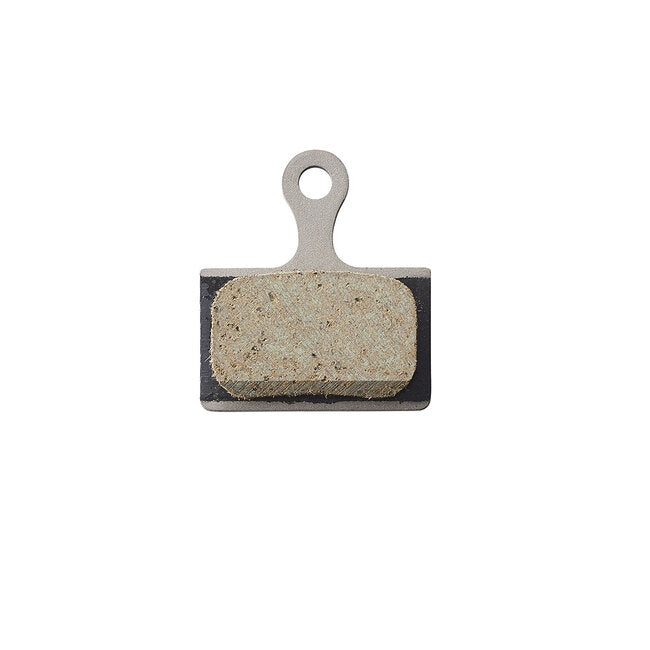

Shimano K05S-RX Resin Disc Brake Pads — One Pair with Spring
Shimano K05S-RX pads replace the friction pads inside a compatible disc brake caliper. Each pack contains two pads and a spring, enough for one brake caliper. This version uses resin friction material on stainless backing plates and has no cooling fins.
What the main features mean
The friction material is the part that presses against the rotor when you brake. Shimano's fifth-generation resin compound is designed for controlled braking feel and reduced noise. Modulation means being able to build braking force progressively as you squeeze the lever; it is different from simply having a sharp initial bite.
The narrow K-type pad shape determines which calipers accept the pads. Matching the brake model is more useful than matching the bicycle brand or wheel size. These pads have no radiator fins projecting above the caliper.
Specifications and contents
- Model: K05S-RX / BP-K05S-RX
- Friction compound: resin, fifth generation
- Backing plate: stainless steel
- Pad shape: narrow K type
- Application: compatible two-piston disc brake calipers
- Cooling fins: none
- Package contents: one pair of pads and a spring, for one caliper
- Product code: EBPK05SRXA; UPC: 192790327303
Compatible calipers listed by Shimano Dealer Portal
BR-M9100, BR-M9110, BR-M8110, BR-R9270, BR-R8170, BR-R7170, BR-R9170, BR-R8070, BR-R7070, BR-4770, BR-RS805, BR-RS505, BR-RS405, BR-RS305, BR-U5000, BR-RX810, BR-RX400 and BR-RX820.
Read the model number on the brake caliper before ordering. A groupset name such as 105, XT or GRX alone is not enough to identify the pad shape.
Common questions
Does one pack do both wheels? No. One pack services one caliper. Order two packs if both front and rear brakes use this pad and both need replacement.
Are these metal pads? The backing plates are metal, but the braking compound is resin. These are resin pads.
Are the rotor and caliper included? No. This listing is for replacement pads and the spring.
Need a fit check? Send Go Grava the caliper model printed on your brake, and we can help confirm the match.
