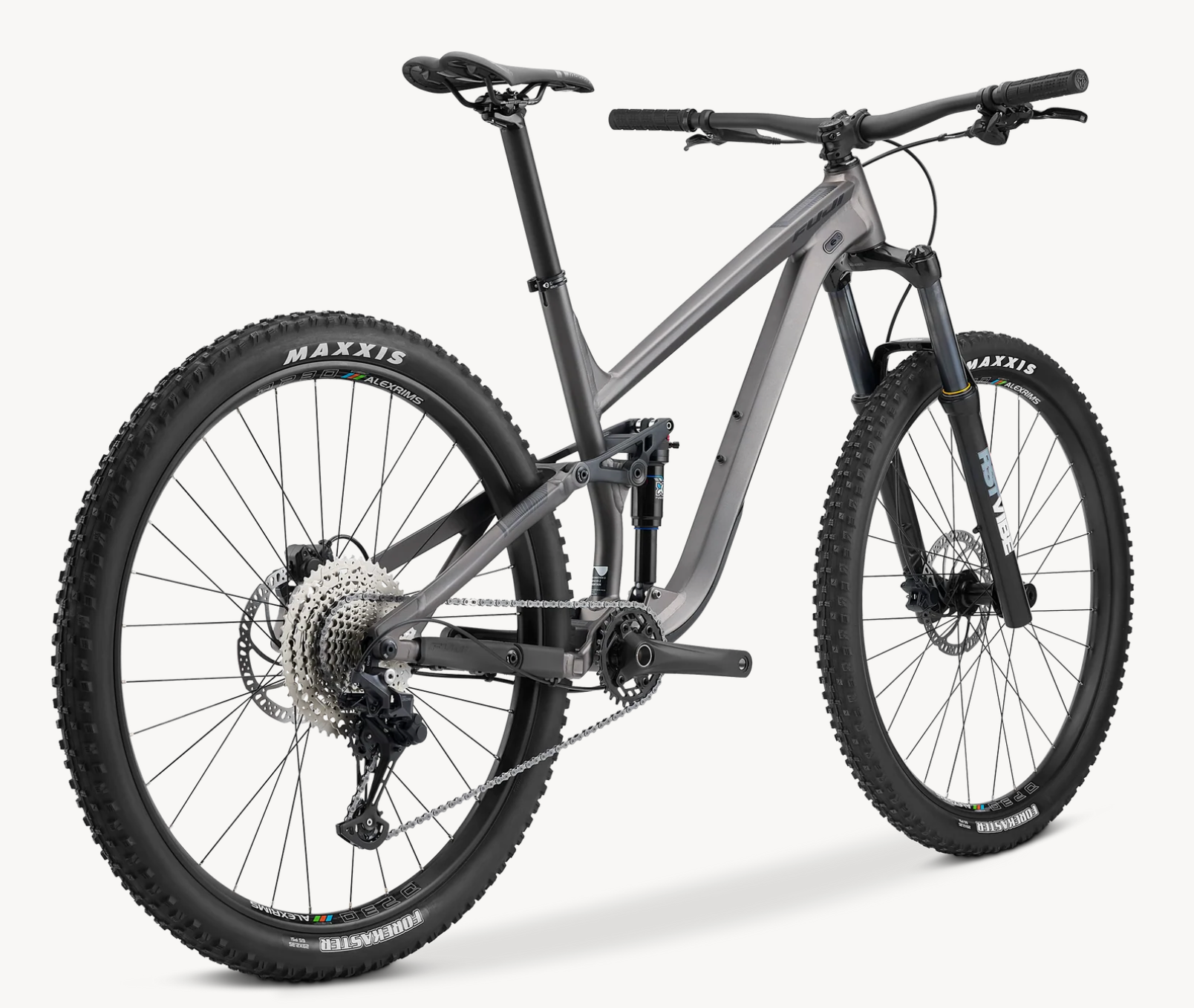

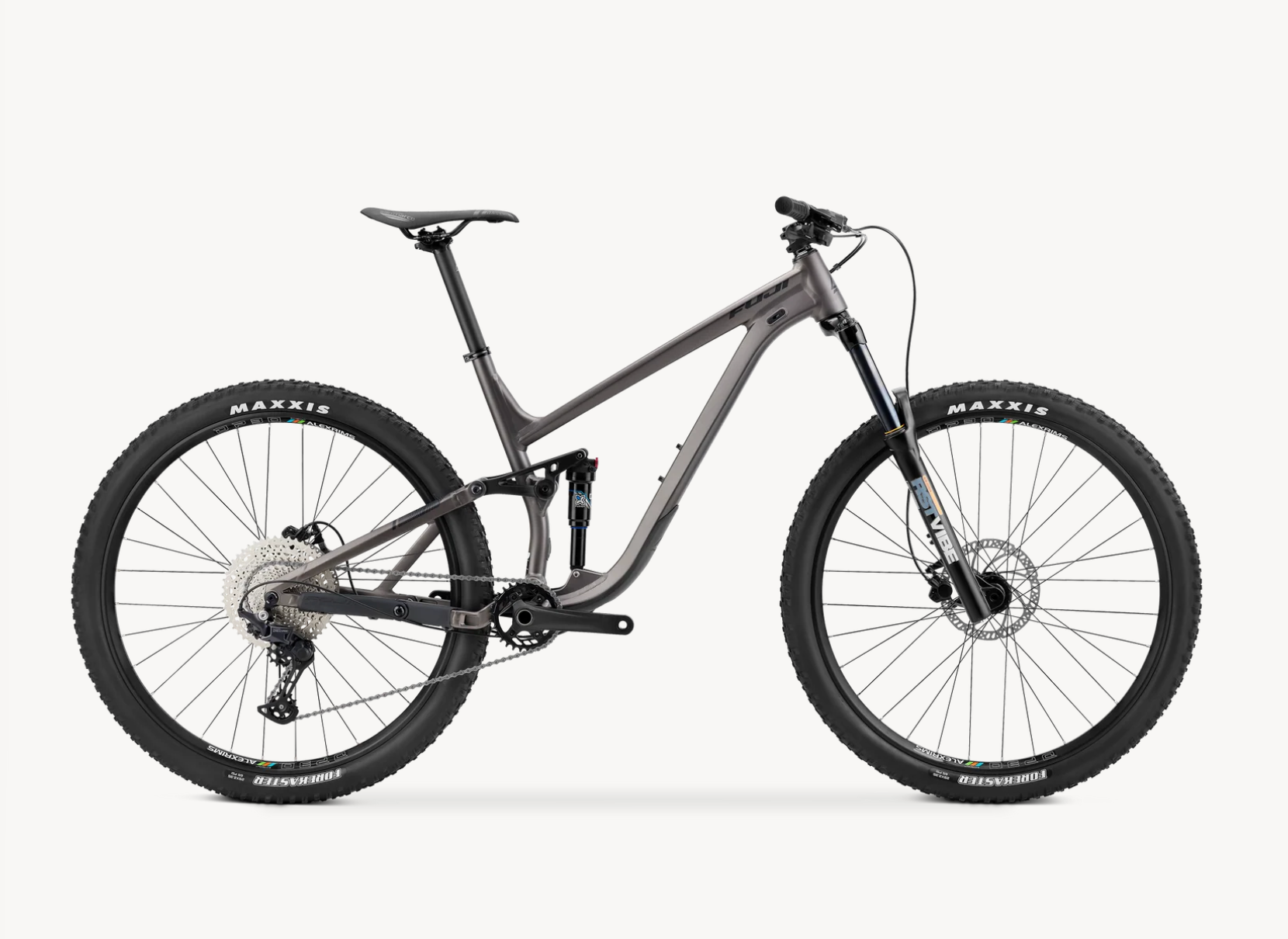

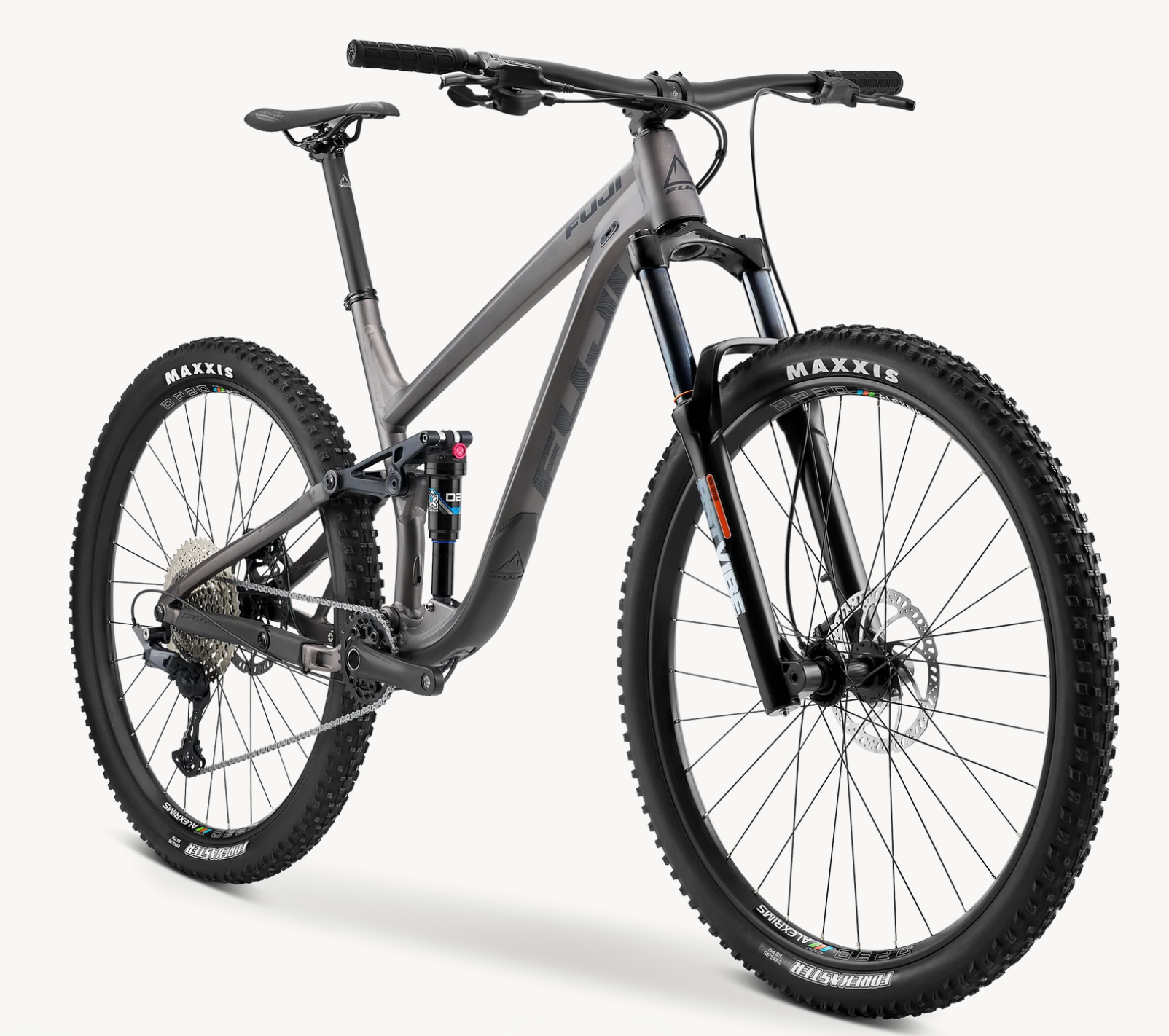

Fuji Rakan 29 1.7 Full Suspension Mountain Bike

A modern 29er trail bike designed to climb efficiently, descend confidently, and handle everything from all-day trail rides to technical singletrack adventures.

The Fuji Rakan 29 1.7 combines 120mm of rear suspension travel with a 140mm suspension fork to create a versatile trail bike that balances pedaling efficiency and trail capability. Built around Fuji's proven MLink® suspension platform, the Rakan delivers excellent traction, predictable handling, and efficient power transfer whether you're climbing, descending, or covering big miles.

With a Shimano Deore 1x11 drivetrain, tubeless-ready wheels, Boost spacing, and modern trail geometry, the Rakan is an excellent choice for riders looking for a capable full-suspension mountain bike without stepping into premium price territory.

Key Functional Details

• Fuji MLink® suspension platform improves pedaling efficiency and traction
• 120mm rear suspension travel paired with a 140mm front fork
• 29-inch wheels roll efficiently and improve obstacle clearance
• Shimano Deore 1x11 drivetrain offers wide-range gearing
• Tubeless-ready wheelset supports lower tire pressures and improved traction
• Boost hub spacing increases wheel stiffness and frame clearance
• Threaded bottom bracket simplifies long-term maintenance
• Excellent platform for trail riding, bikepacking, and all-day mountain bike adventures

Technical Specifications

• Frame: Fuji A6-SL Super-Butted Alloy Front & Rear Triangle
• Suspension Design: MLink® Patented Suspension System
• Rear Travel: 120mm
• Fork: RST Vibe 110-15 Air Fork, 140mm Travel
• Rear Shock: X-Fusion O2 Pro R
• Wheel Size: 29"
• Drivetrain: Shimano Deore 1x11
• Rear Derailleur: Shimano Deore Shadow Plus
• Cassette: Sunrace 10-50T
• Crankset: Prowheel 30T
• Chain: KMC X11
• Bottom Bracket: Threaded External Cup
• Wheelset: Alex DP30 Tubeless Ready
• Tires: Maxxis Forekaster 29 x 2.35"
• Brakes: Tektro M275 Hydraulic Disc Brakes
• Rotors: 180mm Front / Rear
• Handlebar: TranzX Alloy Riser, 780mm Wide
• Stem: TranzX Alloy, 0° Rise
• Grips: WTB Waffle Lock-On
• Saddle: Selle San Marco Monza Full Fit Start Up
• Seatpost: Fuji Alloy 31.6mm
• Hub Spacing: Boost 110x15 Front / 148x12 Rear

Compatibility & Technical Notes

• Uses modern Boost hub spacing for improved wheel stiffness and tire clearance
• Threaded bottom bracket is easier to service than many press-fit systems
• Tubeless-ready wheels allow riders to convert to tubeless with valves and sealant
• 31.6mm seatpost diameter supports many aftermarket dropper post upgrades
• Shimano 11-speed drivetrain parts remain widely available and affordable
• Internal frame routing supports modern cable management
• Designed for trail riding, not downhill bike park use

Service / Ownership Context

• One of the most service-friendly full-suspension bikes in its category
• Threaded bottom bracket reduces long-term maintenance headaches
• Shimano Deore components are known for reliability and affordable replacement parts
• Tubeless conversion is highly recommended for trail performance and flat prevention
• Suspension service intervals should be followed to maintain ride quality and durability
• Excellent upgrade platform for dropper posts, wheels, tires, and suspension tuning

Fit & Use Signals

• Good Fit: Trail riding, singletrack, mountain bike adventures, bikepacking, recreational MTB riders, all-day trail rides
• Not A Fit: Downhill racing, lift-served bike park riding, enduro racing focused on large jumps and extreme terrain
• Use Case: Trail riding, technical singletrack, climbing-focused rides, endurance mountain biking
