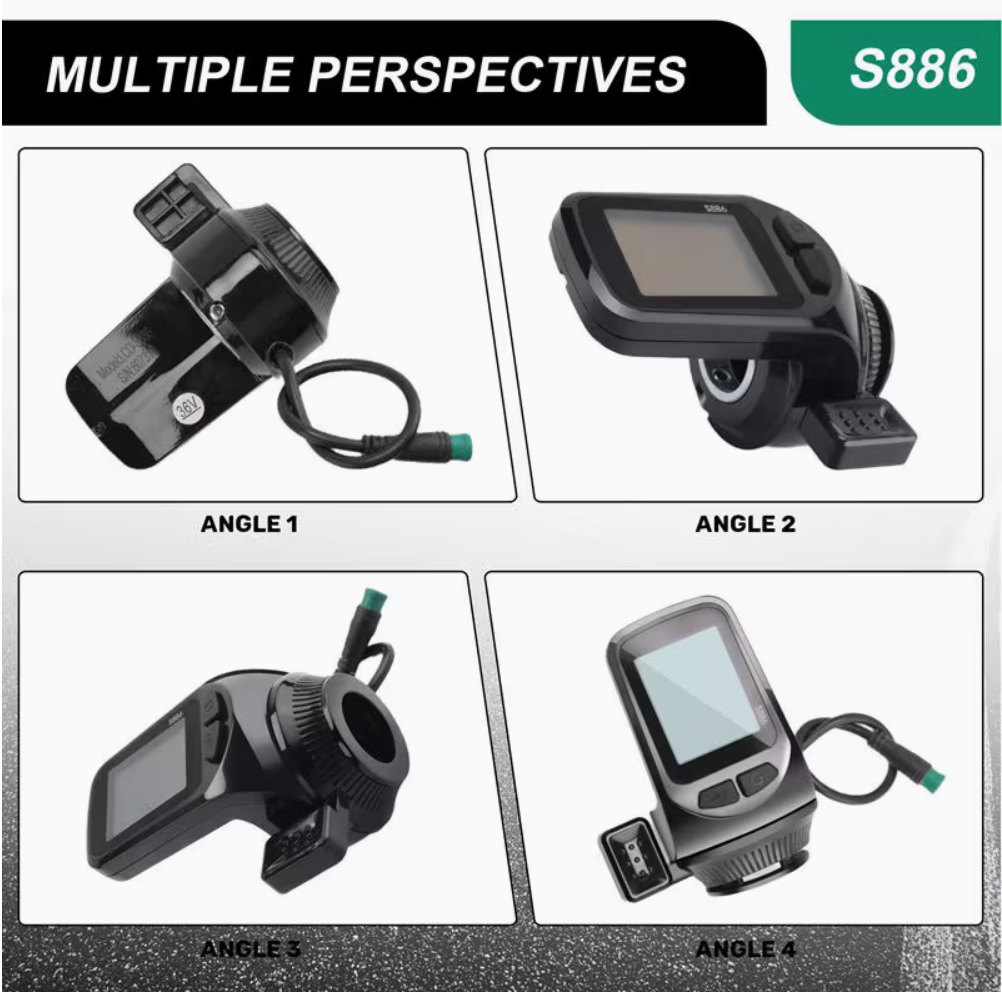

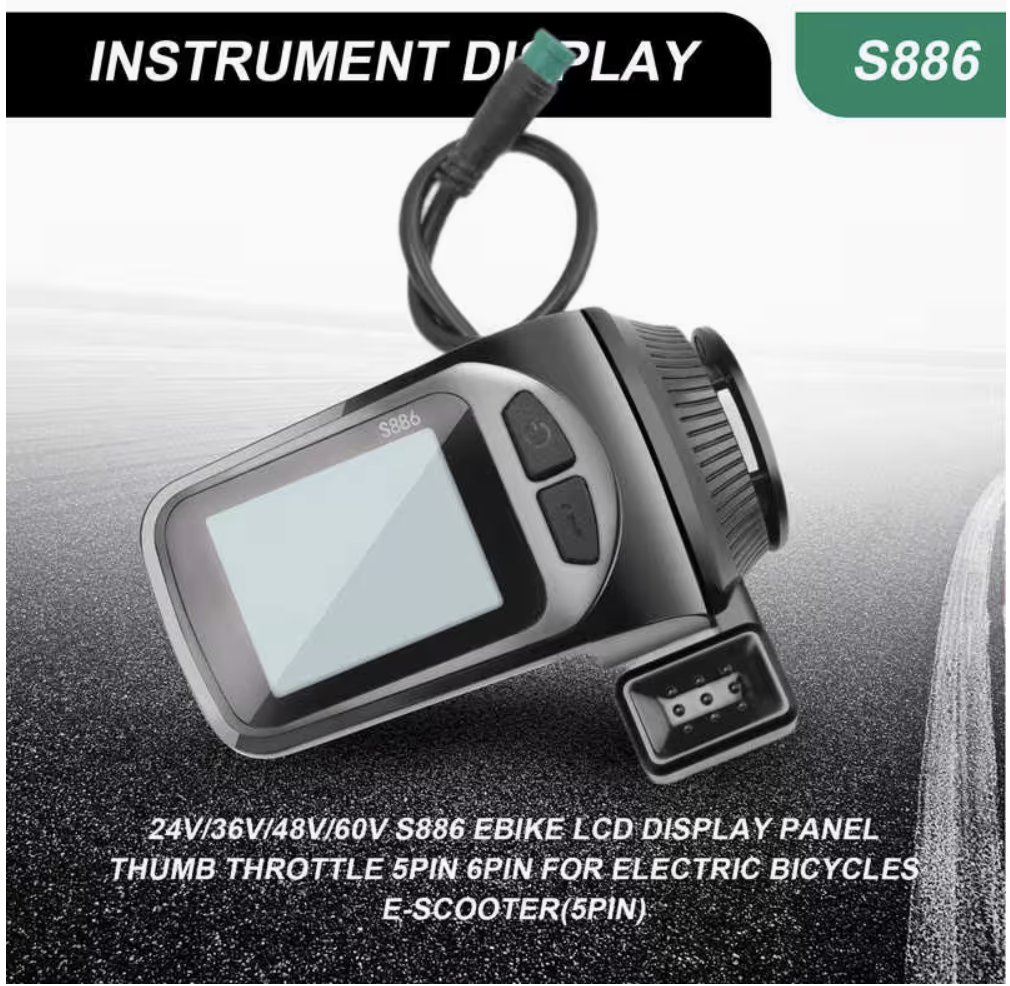

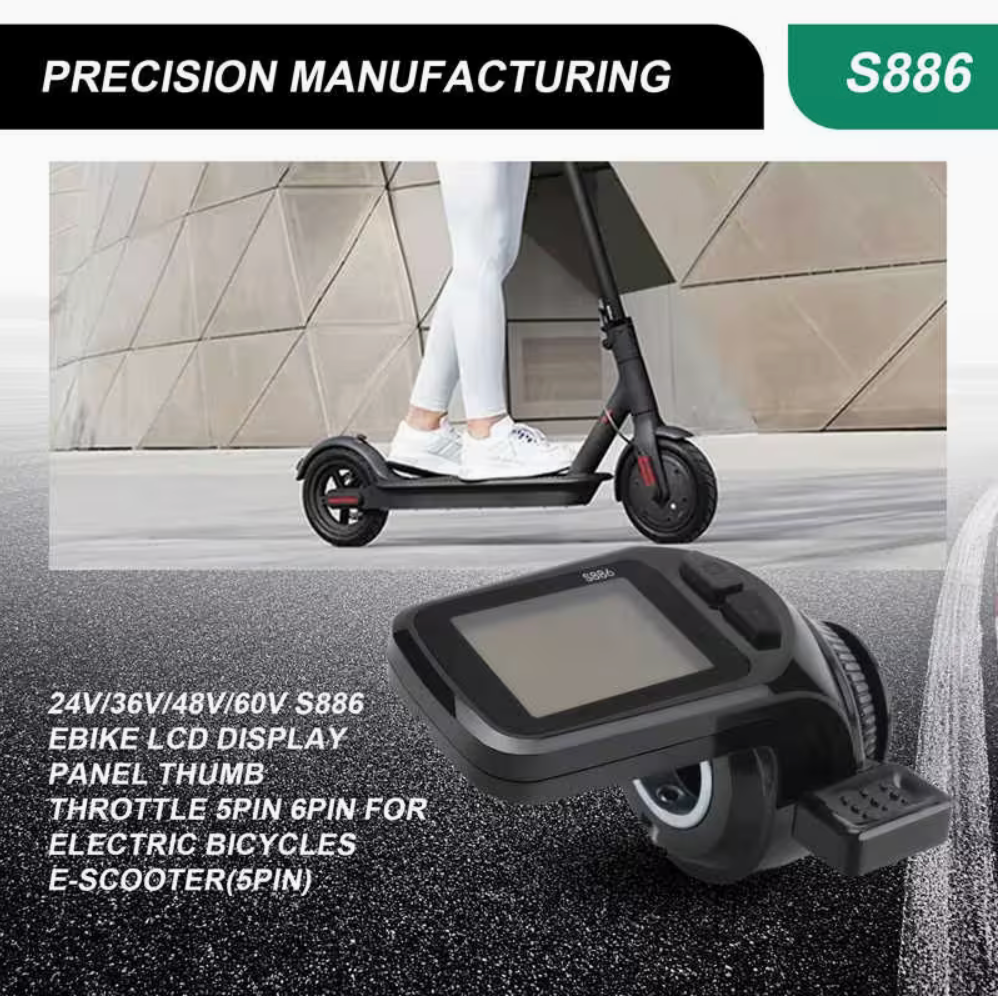

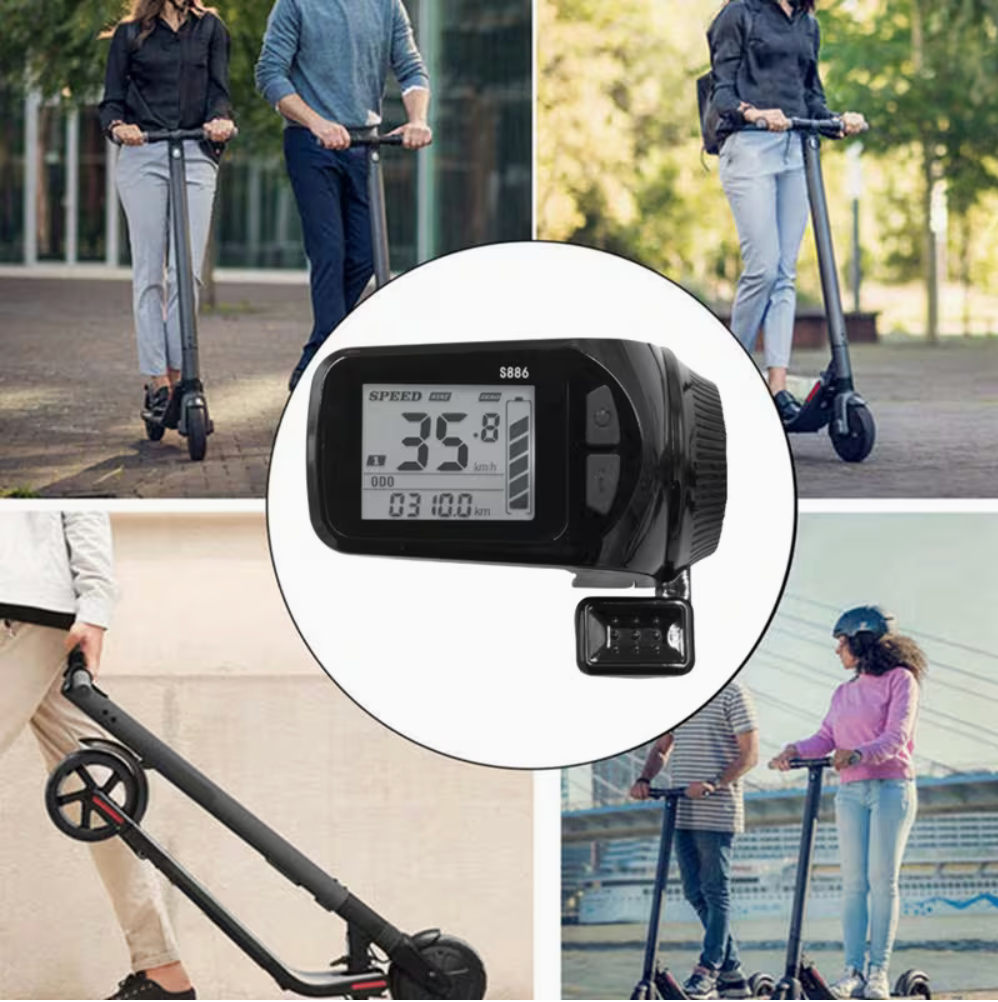

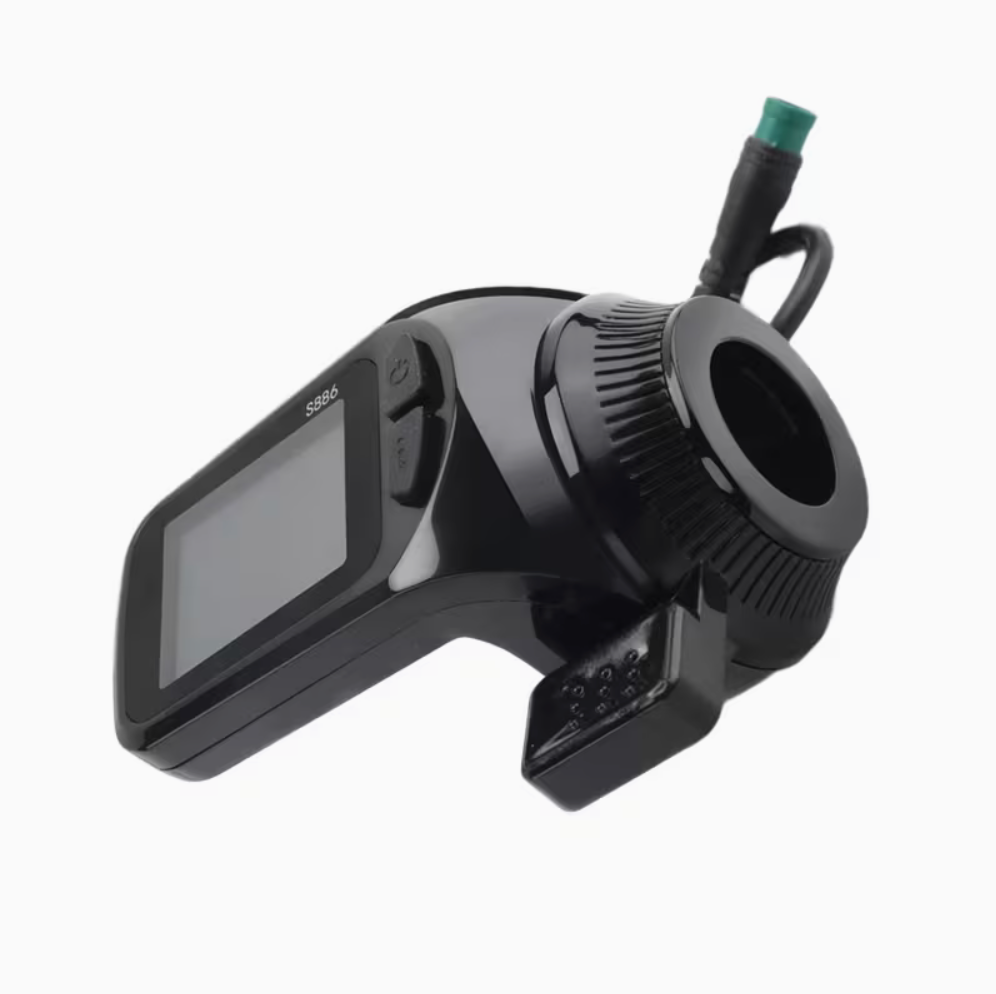

The Commendi S886 is a combined LCD display and thumb throttle used on many hub-drive and mid-drive e-bikes and e-scooters. It provides basic ride data and system status while integrating a right-side thumb throttle in a single control unit.
Riders and technicians choose the S886 when replacing a damaged display/throttle or building a compatible system that requires a simple, controller-driven interface without app dependency or proprietary software.
Key Features
• Integrated LCD display and thumb throttle in one unit
• Supports multiple system voltages: 24V, 36V, 48V, and 60V
• Real-time speed display
• Battery level indicator
• Trip distance and total distance readouts
• Ride time tracking
• Metric / imperial unit switching
• Error code display (controller-dependent)
• Headlight control function (controller-dependent)
• Boost / power assist mode support (controller-dependent)
• Synthetic polymer housing for durability
Compatibility & Use Notes
• Handlebar clamp diameter: 22.2mm (standard flat bars)
• Electrical interface: 5-pin connector (S886 standard)
• Designed for compatible e-bike and e-scooter controllers only
• Voltage must match the controller and battery system
• Functions such as lighting, boost, and error codes depend on controller support
• Not compatible with CAN-bus systems or brand-locked displays
• Appearance, labeling, or color may vary slightly by production batch without affecting function
Service / Ownership Context
This display does not program the controller—it only reports and controls functions the controller already supports. Always confirm connector pinout and voltage compatibility before installation. Improper voltage or mismatched pin configuration can damage the display or controller.
Fit & Use Signals
• A good fit for riders replacing an S886-style display/throttle
• Commonly used on hub-drive commuter e-bikes and e-scooters
• Works well for simple, non-app-based control systems
• Not ideal for proprietary brand systems or CAN-bus setups
• Not the right choice if controller compatibility is unknown
